Heavy Duty Stainless Steel Hinge

Name: Heavy Duty Stainless Steel Hinge
Brand: PBB
SKU: HIN-4545BBHDSBKZN
Price: 113.0 CAD
Availability: InStock

$113.00

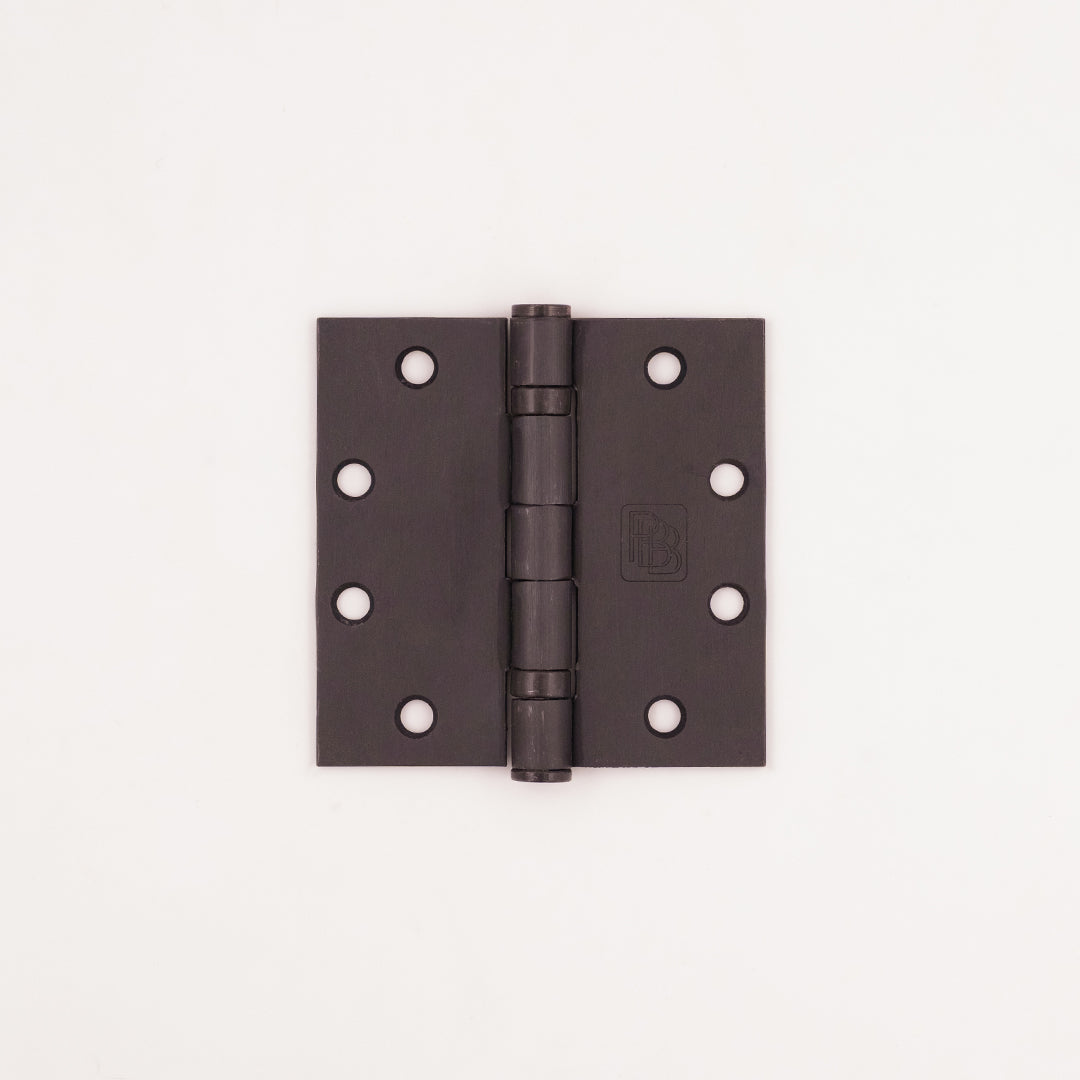

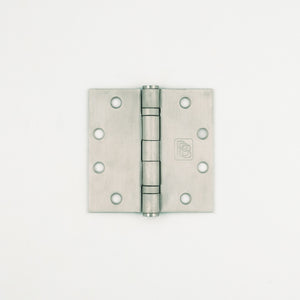

Heavy Duty Stainless Steel Hinges are the upgrade your door needs. Available in three elegant, versatile finishes so you can match with your entry lockset. Stainless steel is an ideal choice for door hardware in coastal environments. These hinges come with a non-removable pin (NRP) for enhanced security on outswing doors, but may be used for inswing doors as well.

Product Details

Base material: Stainless Steel
Finish: Matte Black, Dark Bronze, Satin Stainless Steel
Dimensions: 4.5" x 4.5"
Non-Removable Pin (NRP) hinge
Heavy Duty
Arc hole pattern for screws
Door swing direction: Outswing or Inswing

How Many Hinges Do I Need?
If your door measures less than 90" in height, order 3 hinges. If it measures 90" or more, order 4 hinges. If your door is a Dutch door, you'll need 4 hinges.

Special order finishes are available--call us for more information. Please note that special order finishes are non-refundable and subject to longer lead times.

Spec Sheet
Mortise Template

Tectus Concealed Invisible Door Hinge Fixing Plate

$30.00

Tectus Routing Templates for Tectus Concealed Hinges

$238.00

Tectus Universal Milling Frame for Tectus Concealed Hinges

$1,108.00

Click Here For Shipping Lead Times

The Ultimate Luxury Concealed Door Hinges

Just because they’re invisible doesn’t mean they can’t also be sleek and elegant. Choose from eight premium finish colors to coordinate seamlessly with your space. All the Tectus hinge models have been tested for over a million cycles with no signs of wear. With weight capacities ranging from 88lbs to 660 lbs, you’re sure to find a hinge model that works for your door. But that’s not all—these hinges are compatible with wood, metal, and casing frames, making them phenomenally versatile. They can be adjusted in three dimensions to make installation easy. And the bearings require no oiling, so you don’t need to worry about maintaining them.

Where can you use concealed hinges? Anywhere you want a seamless, upscale look. Suitable for interior or exterior doors, these hinges offer an added layer of security. Because they aren't accessible when the door is closed, concealed hinges can prevent burglaries. For marine environments, we recommend the Stainless Steel Concealed Hinges.

Weight Rating Per Pair of Hinges

Product Name	Weight rating per pair of hinges	Fire Rating
TE 240 3D	88 lbs	None
TE 340 3D	176 lbs	20 minutes
TE 540 3D	264 lbs	20 minutes
TE 640 3D	440lbs	20 minutes
TE 645 3D	660lbs	20 minutes

Product Dimensions

Note: Choose them based on weight rating. Do not select your hinges based on desired dimensions.

Product Name	Overall Length	Width (Frame part)	Width (Door part)	Cutter Diameter
TE 240 3D	6 1/8"	7/8"	6/8 "	5/8"
TE 340 3D	6 5/16"	1 1/8"	1 1/8"	15/16"
TE 540 3D	7 7/8"	1 5/16"	1 5/16"	15/16"
TE 640 3D	9 ½"	1 5/16"	1 5/16"	15/16"
TE 645 3D	11 1/16"	1 7/16"	1 6/16"	15/16"

If you have technical questions, please give us a call at 1-(800)-694-5977, or click the chatbox on the right to be connected with a customer support agent.

Technical Downloads

Product Brochure

Installation Instructions

UL Fire Rating Certification

Tectus concealed hinge on walnut door frame

Simonswerk Tectus: Stylish, Functional Concealed Hinges

Simonswerk's Tectus hinges offer a sleek, unified design with a closed body for enhanced visual appeal. Available in several finishes, these hinges combine functionality and style for any space. Suitable for many door styles including heavy-duty doors.

Engineered for Strength

Hinge Solutions for Every Door

Supporting up to 660lbs with Ease

Up to 132lbs

TE 240 3D

overall length 6 1/8"
width (frame part) 7/8"
width (door part) 6/8 "
utter diameter 5/8"
opening angle 180°

Up to 176lbs

TE 340 3D

overall length 6 5/16"
width (frame part) 1 1/8"
width (door part) 1 1/8"
cutter diameter 15/16"
opening angle 180°

Up to 264lbs

TE 540 3D

overall length 7 7/8"
width (frame part) 1 5/16"
width (door part) 1 5/16"
cutter diameter 15/16
opening angle 180°

Up to 440lbs

TE 640 3D

overall length 9 ½"
width (frame part) 1 5/16"
width (door part) 1 5/16"
cutter diameter 15/16"
opening angle 180°

Up to 660lbs

TE 645 3D

width (frame part) 11 1/16"
width (door part) 1 7/16"
length (frame part) 280.0 mm
length (door part) 260.0 mm
cutter diameter 15/16"
opening angle 180°

ELEGANCE IN EVERY DETAIL

Premium Finishes for Every Style

Discover our premium finishes designed to elevate your space. Mix and match with existing hardware to make the door your own. Each finish complements your personal aesthetic and style.

Sophisticated Elegance

Matte Deep Black

Deep Matte Black brings an air of sophisticated elegance, ideal for contemporary settings. Embrace the modern style of contrast with this striking, versatile finish color.

Rustic Charm

Rustic Umber

Rustic Umber is a deep brown, adding subtle warmth to the sleek hinge design. Perfect for classic or farmhouse style spaces.

Sleek and Sophisticated

Satin Nickel Look

Satin Nickel Look is a sleek, upscale finish with a cool undertone. This shiny finish color coordinates well with contemporary and Mid Century Modern decor.

Modern and Striking

Stainless Steel Look

The Stainless Steel Look brings a touch of industrial chic to any space. With its high-shine look, it keeps your space elegant and sleek.

Timelessly Elegant

Dark Bronze

Dark Bronze is a finish that exudes timeless elegance. This rich, versatile brown color is deep enough to provide contrast and soft enough to work with almost any color scheme. Popular for traditional and contemporary design styles alike.

Modern Sophistication

Satin Brass

Satin Brass is the epitome of modern sophistication. This finish brings a warm, golden hue that lends any door a luxury look. Perfect for both modern and classic interiors, Satin Brass hinges add a hint of elegance to your space.

Timeless Elegance

Polished Brass

Polished Brass is the ultimate in traditional luxury. Its mirror-like shine and classic golden tone provide a distinguished look that makes any door look more elegant.

Crisp Modernity

Traffic White

Traffic White offers a crisp, clean aesthetic that brightens any space. The pure white hue is contemporary and fresh, perfect for modern interior designs.

Elegance Captured
