Anselmi Concealed Interior Invisible Door Hinge

The Anselmi 170 3D is a modern, 100% concealed hinge option for your interior swinging doors.

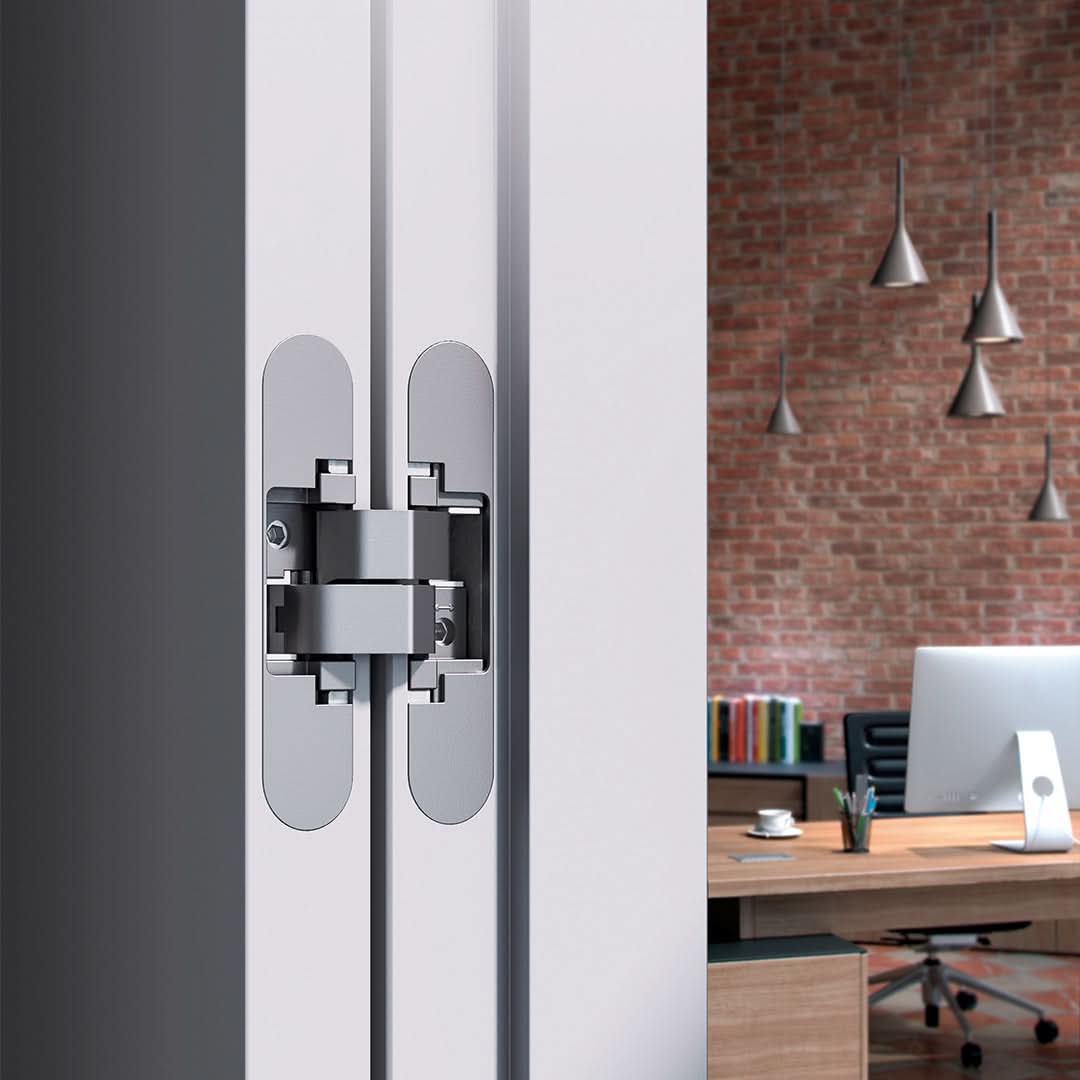

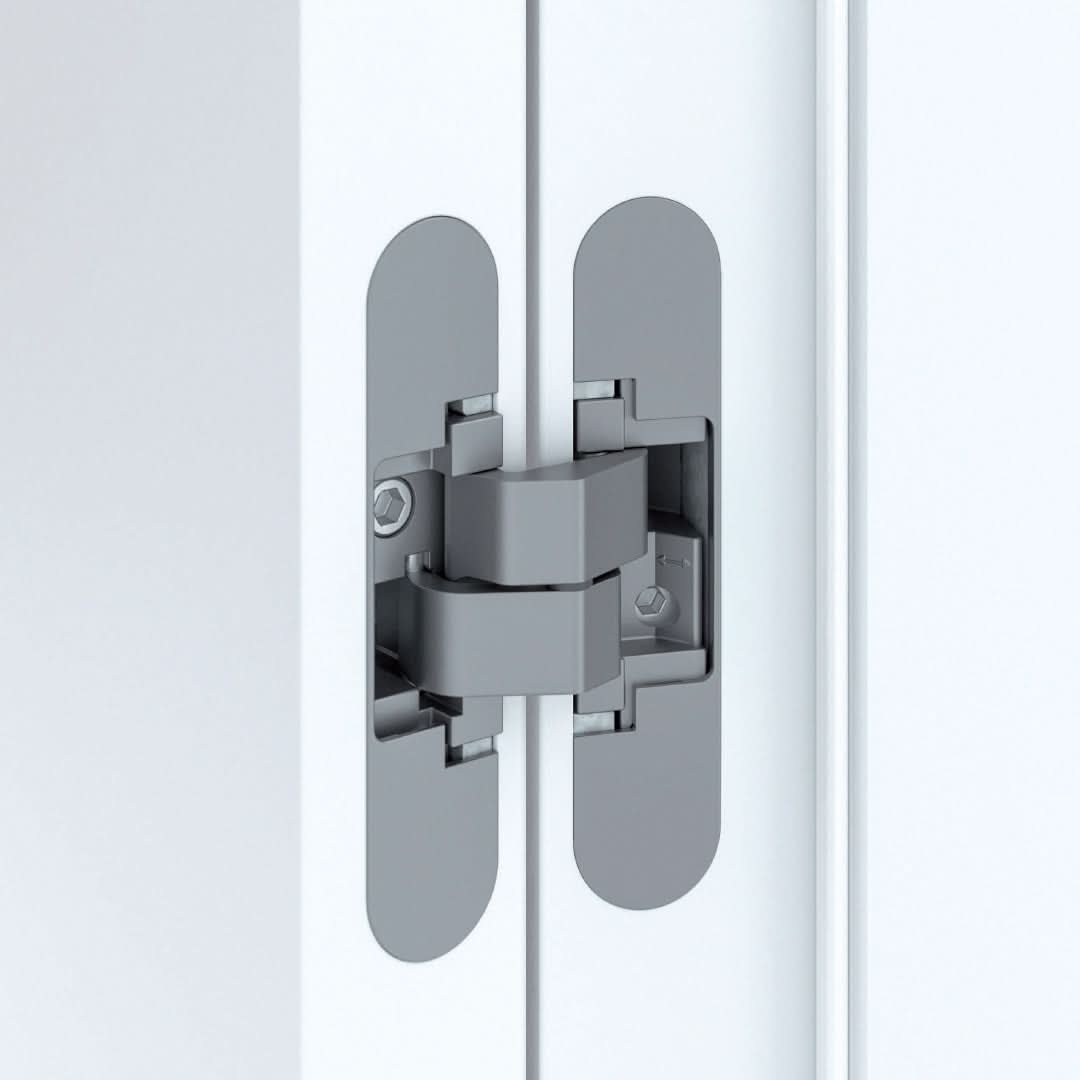

This hinge design is completely concealed with the door and frame, meaning that the hinges are hidden when your door is closed.

Available in 3 beautiful and durable finishes. All finishes in stock and ready to ship.

Price per unit. Adjust quantities after adding to cart.

Note: if you have a wood or aluminum door frame, the Anselmi Door Hinge Fixing Plate, is required for each hinge, sold separately.




Alselmi AN 170 3D promo pic by RealCraft

For unrebated residential doors with 21 mm reduced hinge frame part up to 132lbs.

Product Features

  • Modern and elegant design
  • 100% concealed
  • Reduced hinge frame part 21 mm
  • Completely concealed hinge system
  • For timber and aluminum frames
  • For unrebated residential doors
  • 3D adjustable (side +/- 1,5 mm, height +/- 2,5 mm, compression +/- 1,0 mm)
  • Material Zamak

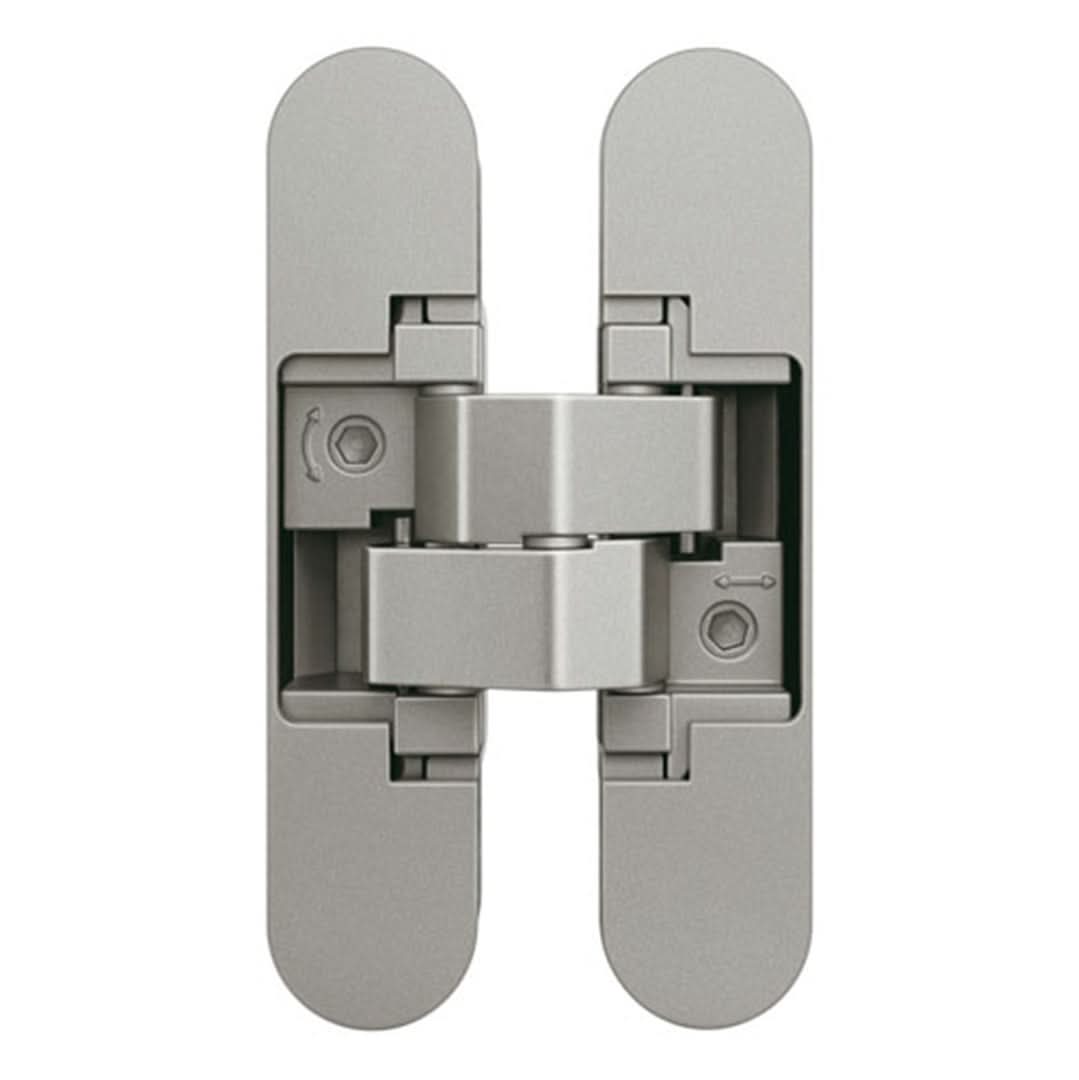

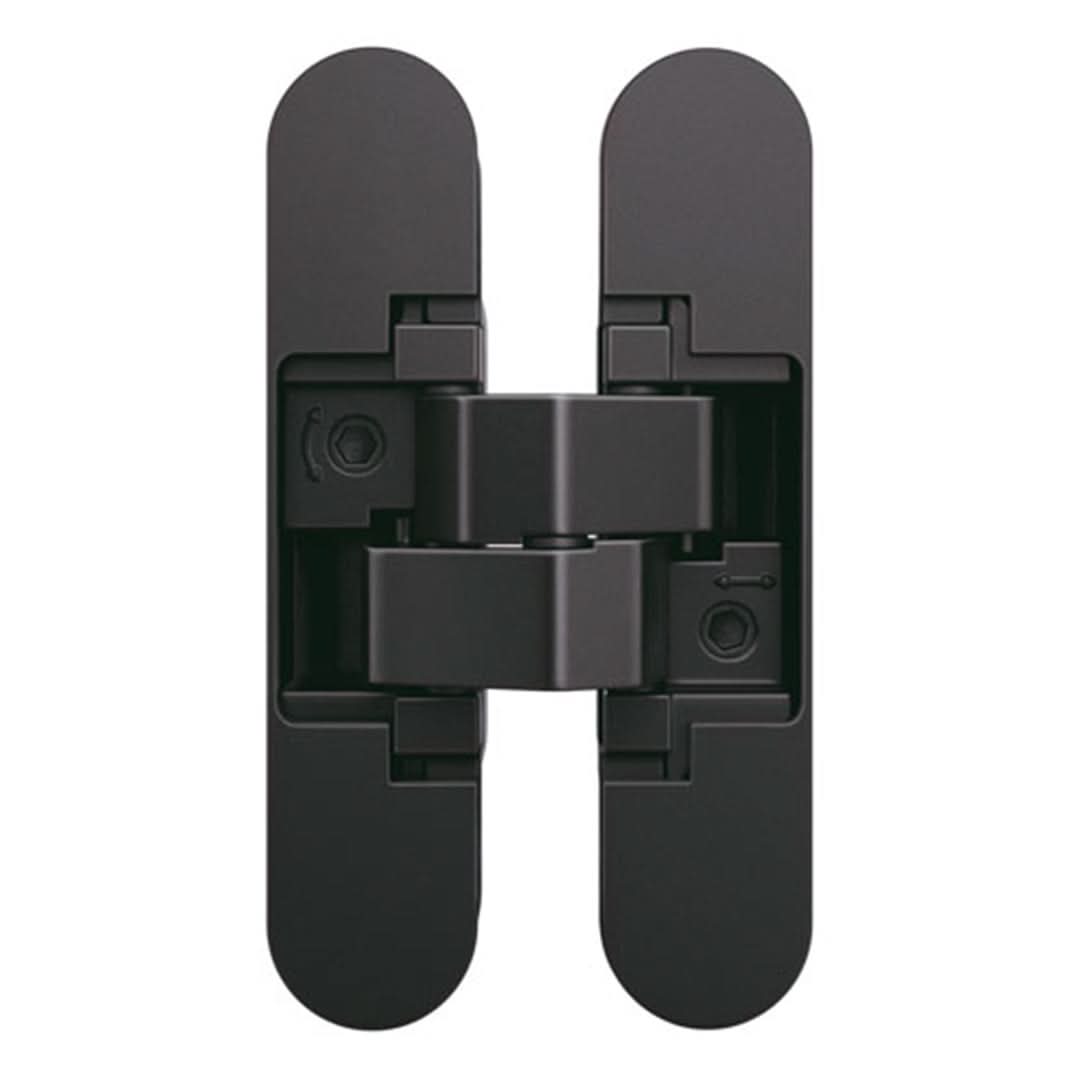

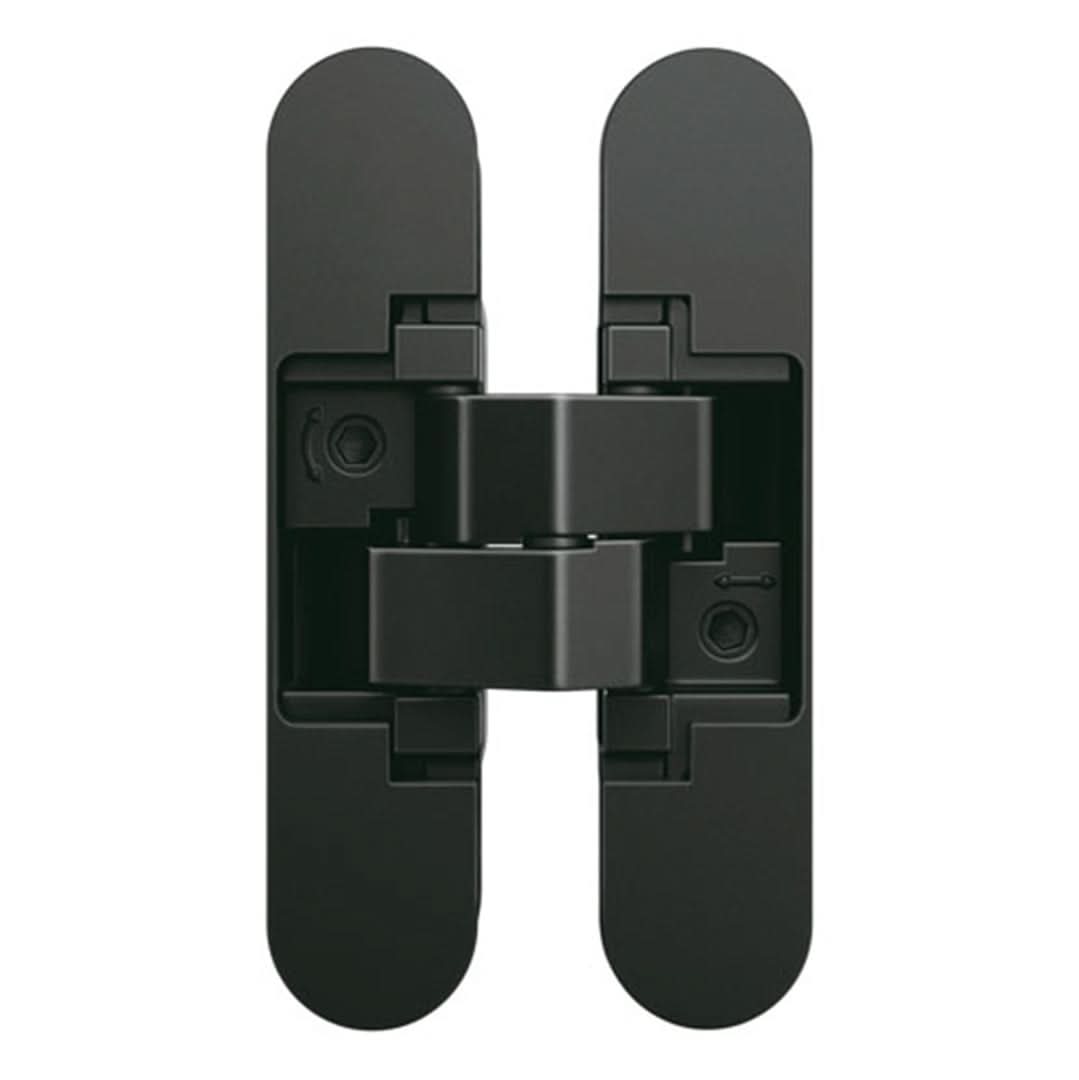

Finishes

We offer three beautiful and durable hinge finishes that will beautifully complement your room design.

Anselmi concealed door hinges finishes by realcraft



Technical Details

Attributes Value
Load capacity 132lbs
Overall length 4.33 inch
Width (door part) .94 inch
Width (frame part) .94 inch
Cutter diameter .62 inch
Collar ring diameter 1.06 inch
Opening angle 180°


    How Many Hinges do I need?

    As a general rule, for every 30” (762 mm) of the door height, there should be one hinge. Most doors are roughly 90” tall and have three hinges. For doors with a width greater than 37” (940 mm) to 48” (122 mm), an extra hinge could be used for additional strength. The extra hinge helps support the additional weight and tension applied to the frame created by the wider door width.

    Note: The load capacity mentioned above refers to the use of 2 hinges per door leaf (36 x 83 inches).

    What is a door hinge?

    A door hinge is a simple mechanicalhardware piece used to connect a door slab to the wall, allowing it to open and close on a fixed axis. Most door hinge applications limit the opening to a certain motion within a 360° arc angle. The Anselmi Concealed Interior Door Hinge limits the opening motion up to 180° arc angle.

    Concealed hinges are a very popular hinge design because of their discrete installation. The Anselmi concealed hinge is completely invisible when the door is closed.

    Although hinges are commonly used forswinging barn door applications, they can also be used for lids, tables, balconies, gates, windows, and many more. Pair it with your favoritedoor handle for an even more cohesive look.


    Questions about Door hinges? Contact us at800-694-5977 |info@realcraft.com.
