NOTE: These are only the hangers and do not include the hardware track. Please go to Swiss Rod Brass Modern Barn Door Hardware for the complete kit.

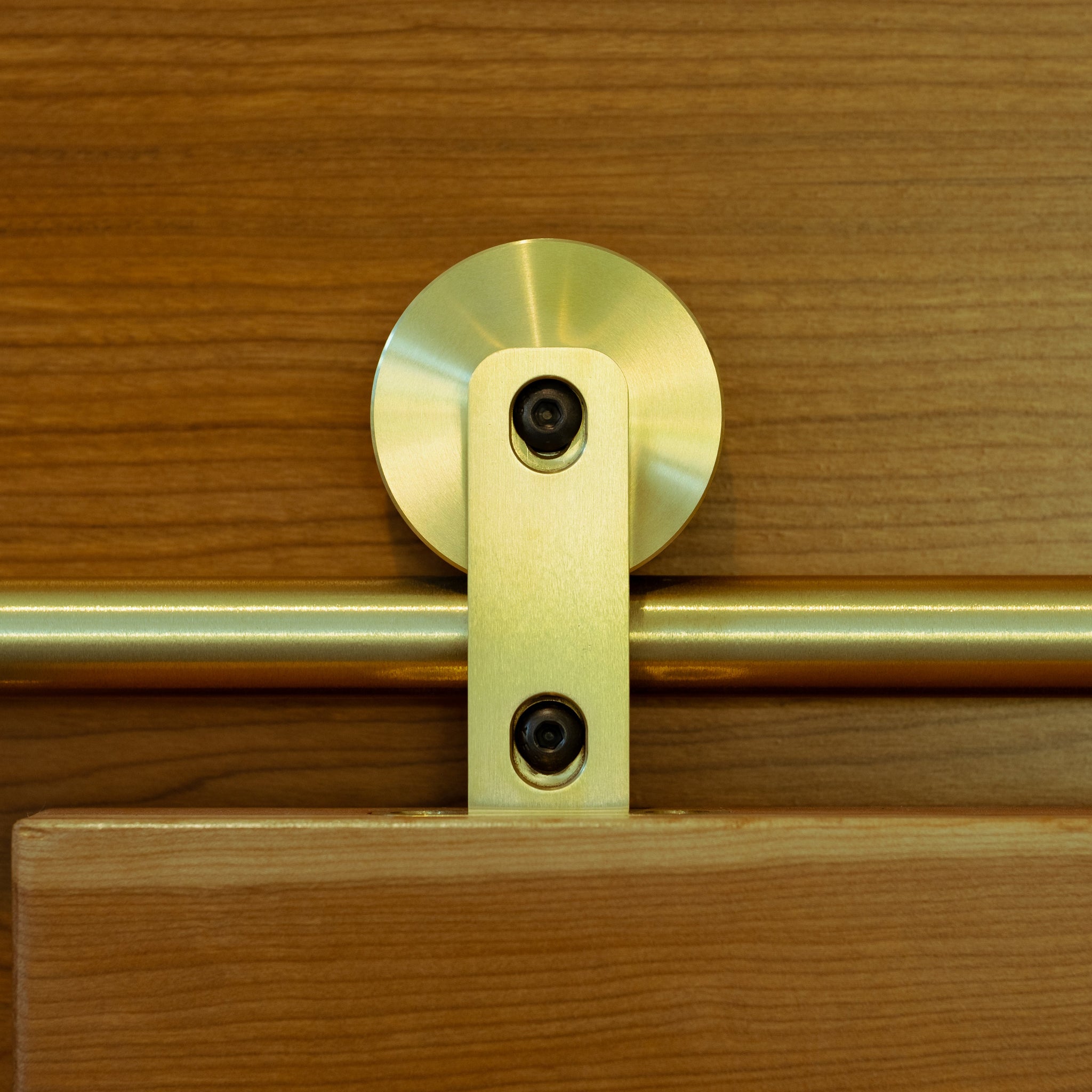

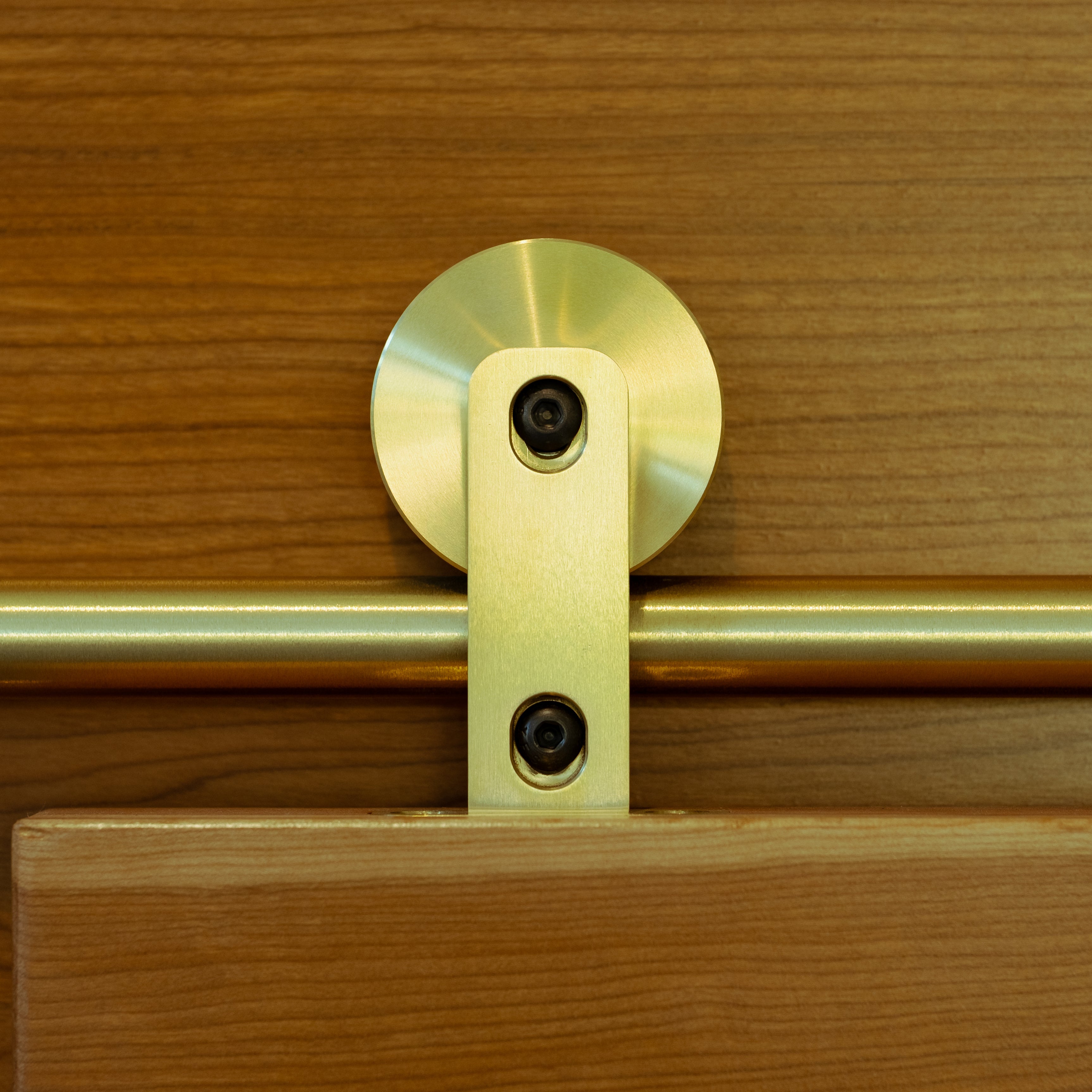

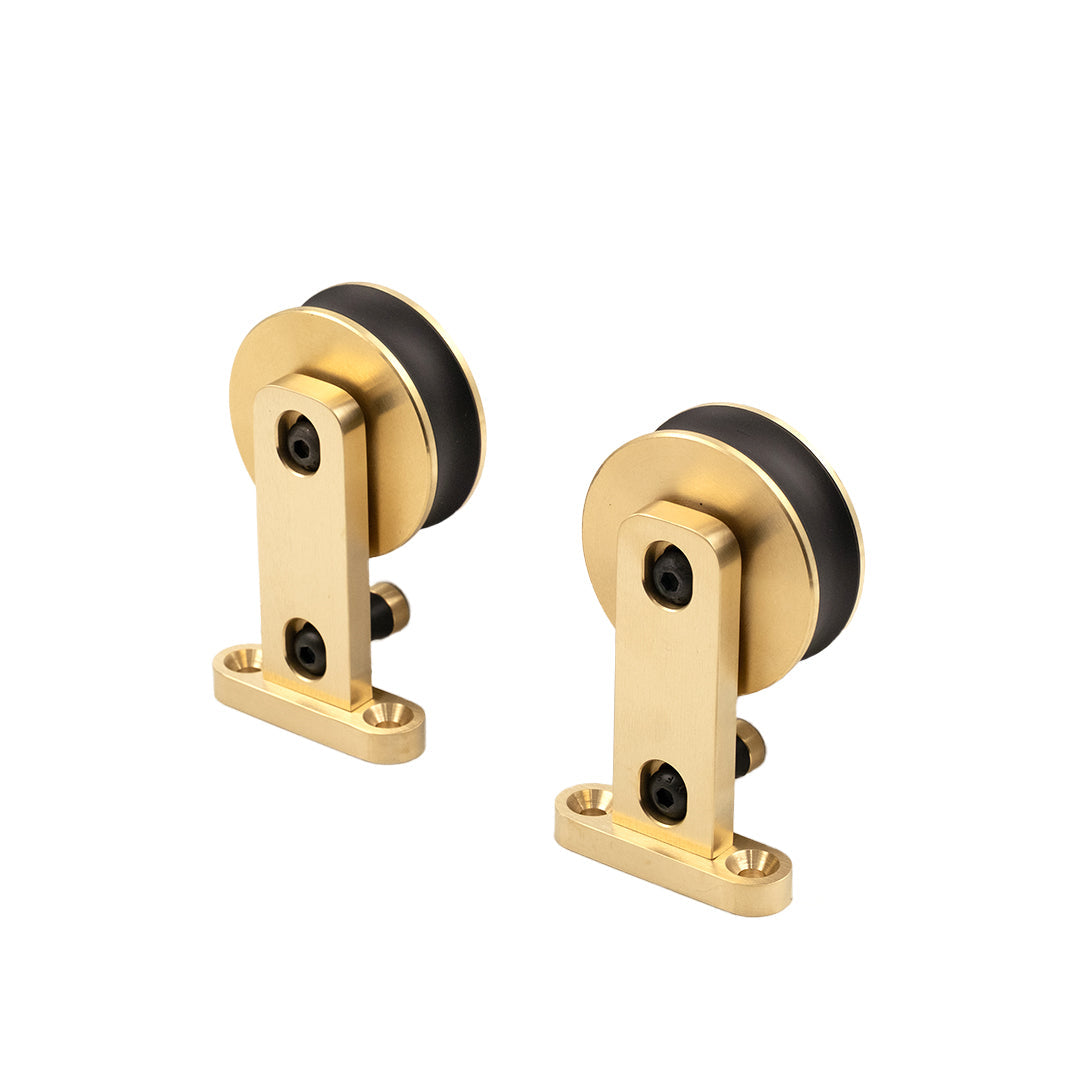

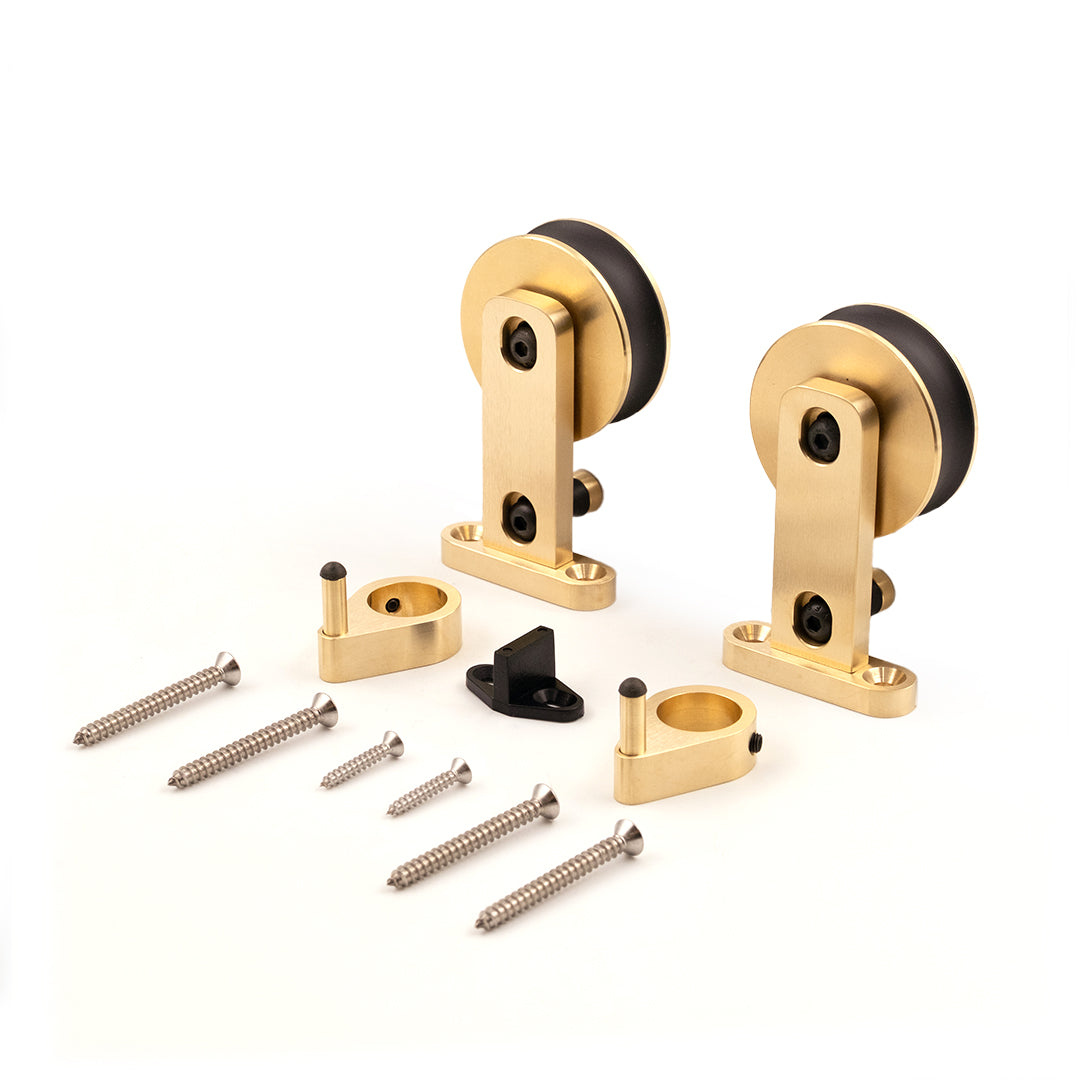

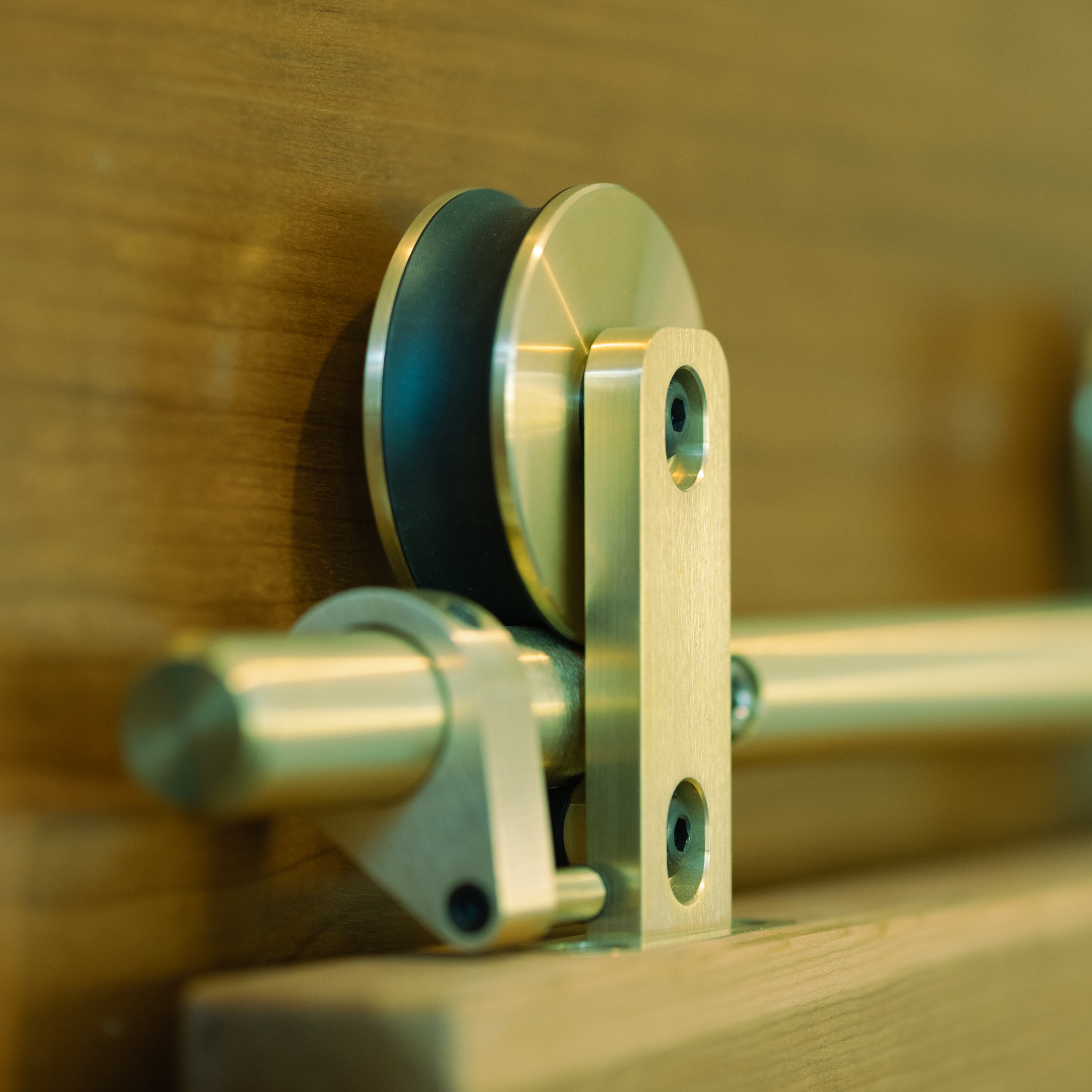

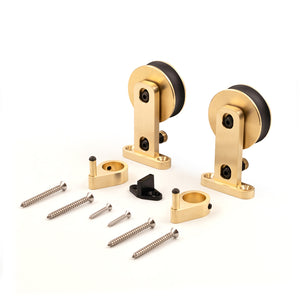

Swiss Rod Brass Modern Barn Door Hardware Hangers.
NOTE: These are only the hangers and do not include the hardware track. Please go to Swiss Rod Brass Modern Barn Door Hardware for the complete kit.
Swiss Rod Brass Modern Barn Door Hardware Hangers.
Brass barn door hardware kits are machined in Washington State, USA.
Each pair of architectural series wheels can hold a door up to 150 pounds maximum.
Brass is a sensitive metal that reacts to contact with oils and moisture. Touching brass hardware with bare hands will result in tarnishing and visible oxidization over time. We recommend using a brass polish after handling, and regularly after installation to maintain shine and prevent tarnishing that will occur naturally with age. Because brass is a softer metal, brass hardware kits come with stainless steel fasteners to ensure durability.
This hardware ships free within the continental United States. Free shipping excludes expedited shipping, international shipments, and oversize orders that require LTL shipping.
Doors are not included with the purchase of hardware.
If you have questions, or if your project requires special consideration, please call 1-800-694-5977. We'd be happy to help!
For a single door, multiply your door width by two for ideal track length. Example: For a 3' wide barn door, you'd need a 6' barn door hardware kit.
For bi-parting doors, you'll need to add the width of both doors together, then multiply that sum by two. Example: For two 3' wide bi-parting doors, you would need a 12' track. When you are making your selections in the menu, change "quantity of doors on track" to the correct amount so we can send you all the hangers and extra hardware you'll need.
For bypassing doors, you’ll need our bypassing barn door hardware kit.
If your door requires a track length that falls between our standard sizes, you can round up to the next size and pair with the adjustable end stop. This will allow you to choose where the door stops on the track. We are also able to cut custom tracks.
For custom lengths, call us at 1-800-694-5977.
Use the table below to find out how many rails you’ll receive in your flat track hardware kit.
| Selected Track Size | Pieces in Kit | Total Actual Length |
| 4' | 1 rail at 47" | 47" |
| 5' | 1 rail at 59" | 59" |
| 5'3" | 1 rail at 63" | 63" |
| 6' | 1 rail at 71" | 71" |
| 6'6" | 1 rail at 77" | 77" |
| 7' | 1 rail at 83" | 83" |
| 7’6" | 1 rail at 89" | 89" |
| 8' | 1 rail at 95" | 95" |
| 8’6" | 1 rail at 101" | 101" |
| 9' one-piece | 1 rail at 107" | 107" |
| 9' two-piece | 2 rails at 53.5" | 107" |
| 10' one-piece | 1 rail at 119" | 119" |
| 10' two-piece | 2 rails at 60" | 120" |
| 12' one-piece | 1 rail at 143" | 143" |
| 12' two-piece | 2 rails at 71" | 142" |
| 14' one-piece | 1 rail at 166" | 166" |
| 14' two-piece | 2 rails at 83" | 166" |
| 16' one-piece | 1 rail at 83" | 83" |
| 16' two-piece | 2 rails at 95" | 190" |
| 16' one-piece | 1 rail at 190" | 190" |
| 18' two-piece | 2 rails at 107" | 214" |
| 18' one-piece | 1 rail at 214" | 214" |
| 18' three-piece | 3 rails at 71" | 213" |
| 20' two-piece | 2 rails at 119" | 238" |
| 20' one-piece | 1 rail at 238" | 238" |
| 22' two-piece | 1 rail at 119"; 1 rail at 143” | 262" |
| 24' three-piece | 3 rails at 95" | 285" |
| 24' two-piece | 2 rails at 143" | 286" |
Hardware Style Weight Rating (per pair of hangers) Aero | Prop 150 lb. door Classic | Hammered 400 lb. door Classic Brass 150 lb. door Horseshoe 550 lb. door Industrial Flat Track 800 lb. door Box Rail 400 lb. door Swiss Rod | Hex Bar 300 lb. door Brass Swiss Rod 150 lb. door
