Frameless Clamp Kits for Sliding Glass Pocket Doors

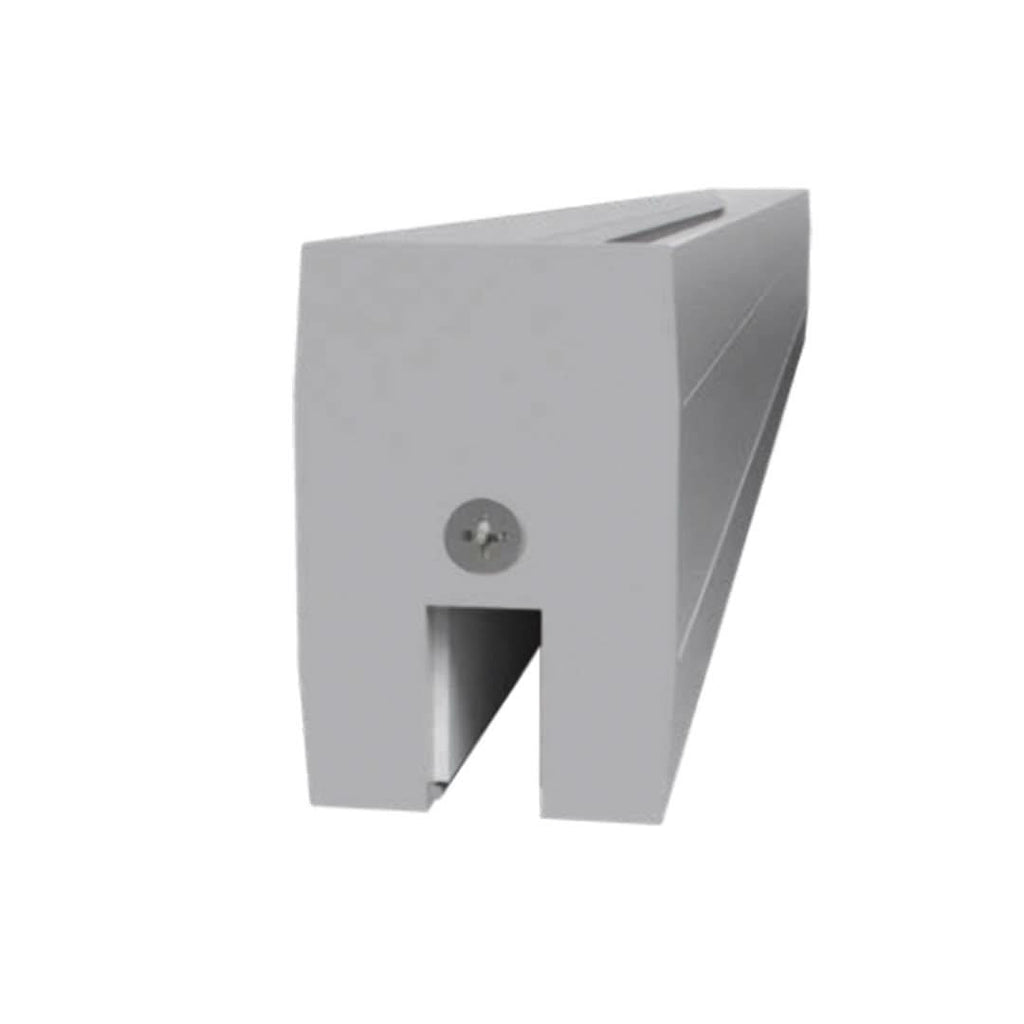

RealCraft is proud to to offer the Cavity Sliders Frameless Glass Clamp for smooth-running and reliable sliding glass pocket doors. The glass clamp offers a low-profile, elegant look, and can be hidden inside the pocket door track itself.

The glass clamp is one part of a sliding glass pocket door sytem. It is compatible with all of our standard Cavity Sliders track systems (Pocket Door Frame Kits, Ceiling Flush Tracks, Low Profile Tracks, and Wall Mount Kits). This clamp is designed for frameless glass sliding doors with 3/8” or 1/2” glass thickness and requires M8 Carriage Packs or Double Action Sofstops.

Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

Sliding Track

Required

Have questions? Need a custom track size? Call us at (253)-853-3815.

Clamp Length Glass Thickness

Step Two

*Maximum of 2.

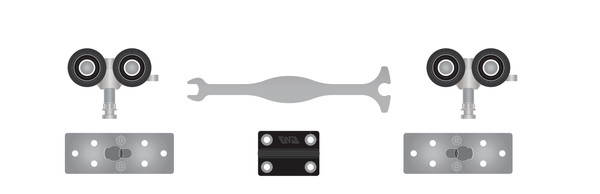

Frameless Glass Clamp With Carriage

Required

The glass clamps are weight rated up to 500lbs per clamp. M8 carriages are recommended for glass clamps. A SofStop can be used if the door is within the load capacity (176lbs). Two track stops should be used with glass doors.

Clamp Length Glass Thickness Carriage Options

How Many Doors?

*Maximum of 2.

*1 Per Door Slab

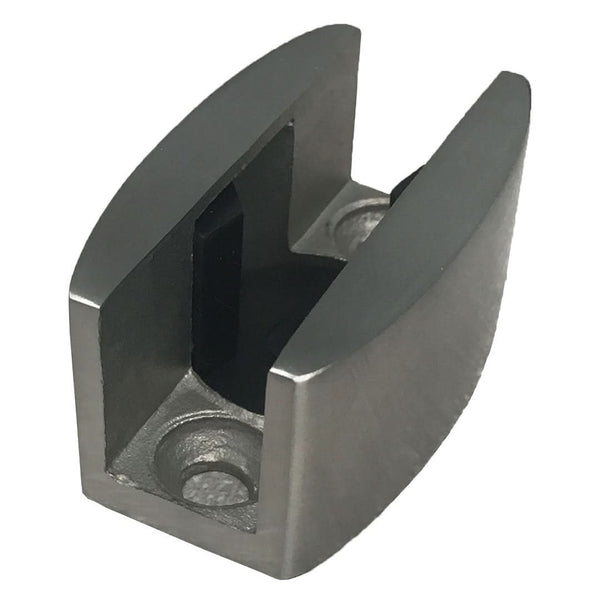

CS Frameless Glass Clamp U Guide for 3/8" & 1/2" Glass

Quantity*

*1 Per Door Slab

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

High quality, heavy-duty extrude aluminium
Smooth, quiet operation
Simple Carriage Pack insertation
Pre-machined holes in track for easy installation
Self-centering door bolt to ensure door hangs plumb
Quick-release top plate
Sofstop compatibility

Maximum Door Weight: 500lb (240kg)
Door Thickness: 1-3/8" up to 1-3/4" thick or greater

High quality, heavy duty extruded aluminum tracks
Track is notched for simple trolley insertion
Pre-machined holes in track for simple installation
Large diameter, high performance nylon wheels with precision ground bearings
Self-centering door bolt to ensure door hangs plumb
Quick release top plate
Suitable for doors 1 3/8" to 1 3/4" thick or greater

Please Note: For bi-parting applications, we suggest using two separate tracks that join in the middle, instead of a single length track. This allows for the notches in the track to be in the center and remain accessible. When single tracks are used for bi-parting applications, the notch will not be accessible making installation or servicing impossible.

Your glass doors should be the same width as the clamp for the smoothest operation and most beautiful finished look. If your glass doors are slightly larger than the clamp, then you can center the clamp on the door.

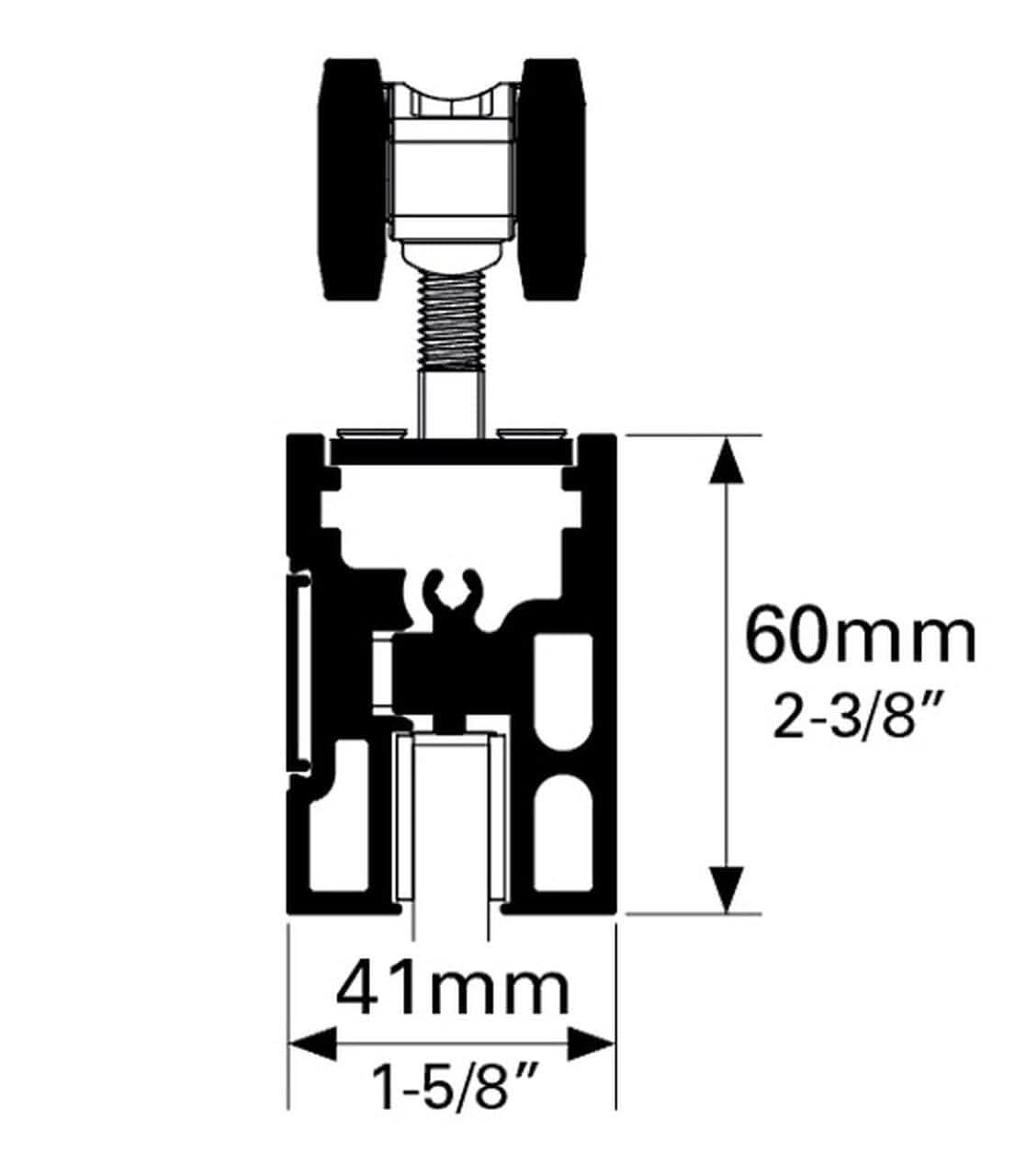

When it comes to installation, you can choose between concealing the clamps or showing them. You can control this by adjusting the head sides of your corresponding low profile track to cover the glass clamps. See installation instructions for more information.

Soft Stop: Keeps the door from slamming. Closing will be smooth and soft.

Adjustable End Stop: Choose exactly where you want your door to stop on the track. This is an optimal way to create space for light switches.

Note: Soft stops and adjustable end stops are not compatible with each other.

Wall Mounted Roller Guide: Heavy-duty, reliable, and optimal for thicker doors or in rooms where you can't drill into the floor.

C-Guide: A sleek and elegant floor guide. If you have to see it all the time, it might as well be beautiful.
Standoff Rings: Make room for wall molding so the door has optimal clearance.

Drywall Anti-Crushing Rings: Keep the track hanging straight instead of leaning away from the wall over time.
