RealCraft Classic Flat Track Sliding Door Hardware

Frameless Clamp Kits for Sliding Glass Pocket Doors

Starting At: $1,663

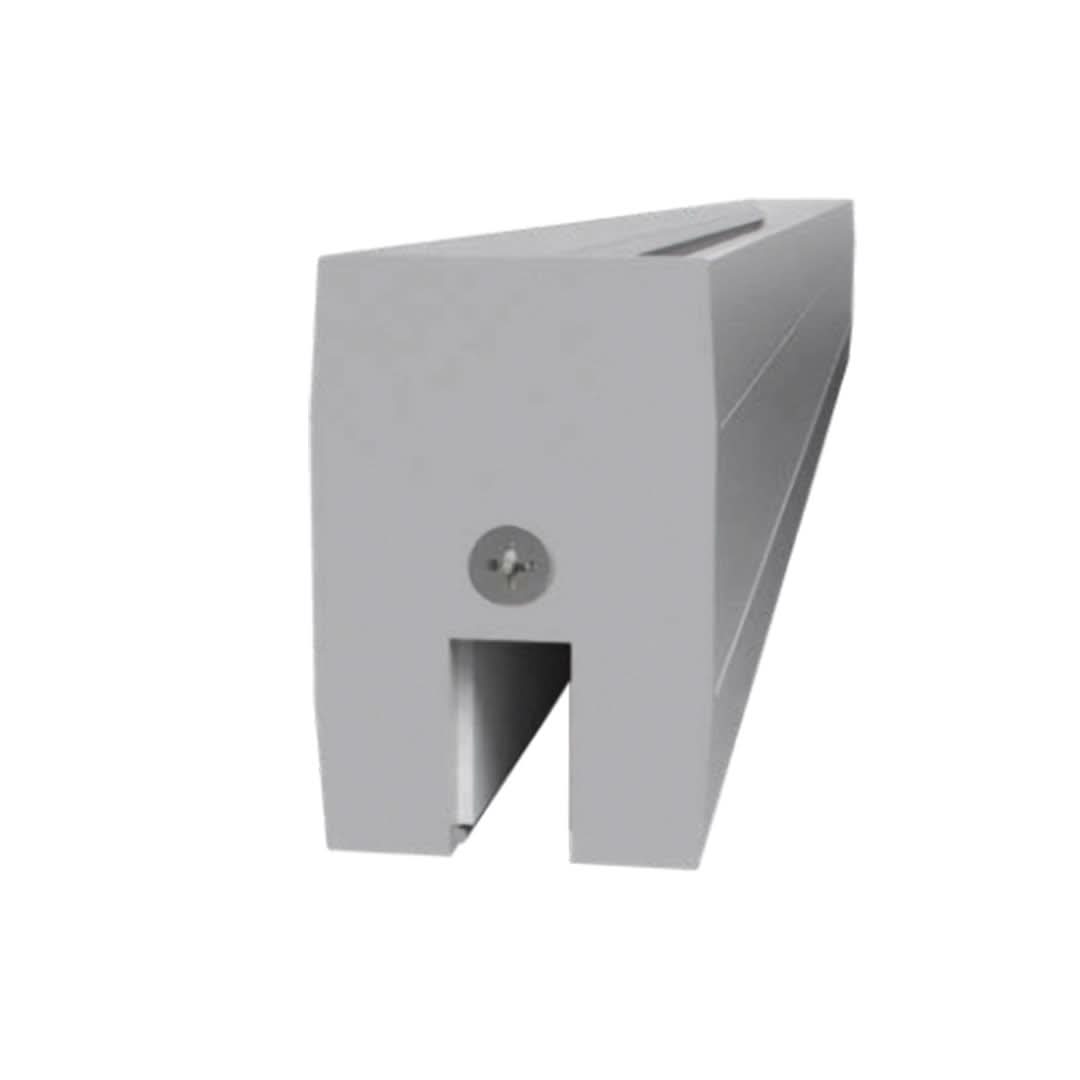

RealCraft is proud to to offer the Cavity Sliders Frameless Glass Clamp for smooth-running and reliable sliding glass pocket doors. The glass clamp offers a low-profile, elegant look, and can be hidden inside the pocket door track itself.



The glass clamp is one part of a sliding glass pocket door sytem. It is compatible with all of our standard Cavity Sliders track systems (Pocket Door Frame Kits, Ceiling Flush Tracks, Low Profile Tracks, and Wall Mount Kits). This clamp is designed for frameless glass sliding doors with 3/8” or 1/2” glass thickness and requires M8 Carriage Packs or Double Action Sofstops.

Step 1: Select Your Track System (required)*

Glass Clamp compatible hardware: pocket door, ceiling flush, and low profile track pictures
Sold out

Step 2: Select Your Glass Clamp (required)*

Sold out

Recommended Accessories

Soft Stop Barn Door Hardware for soft and smooth barn door operations. Developed by RealCraft

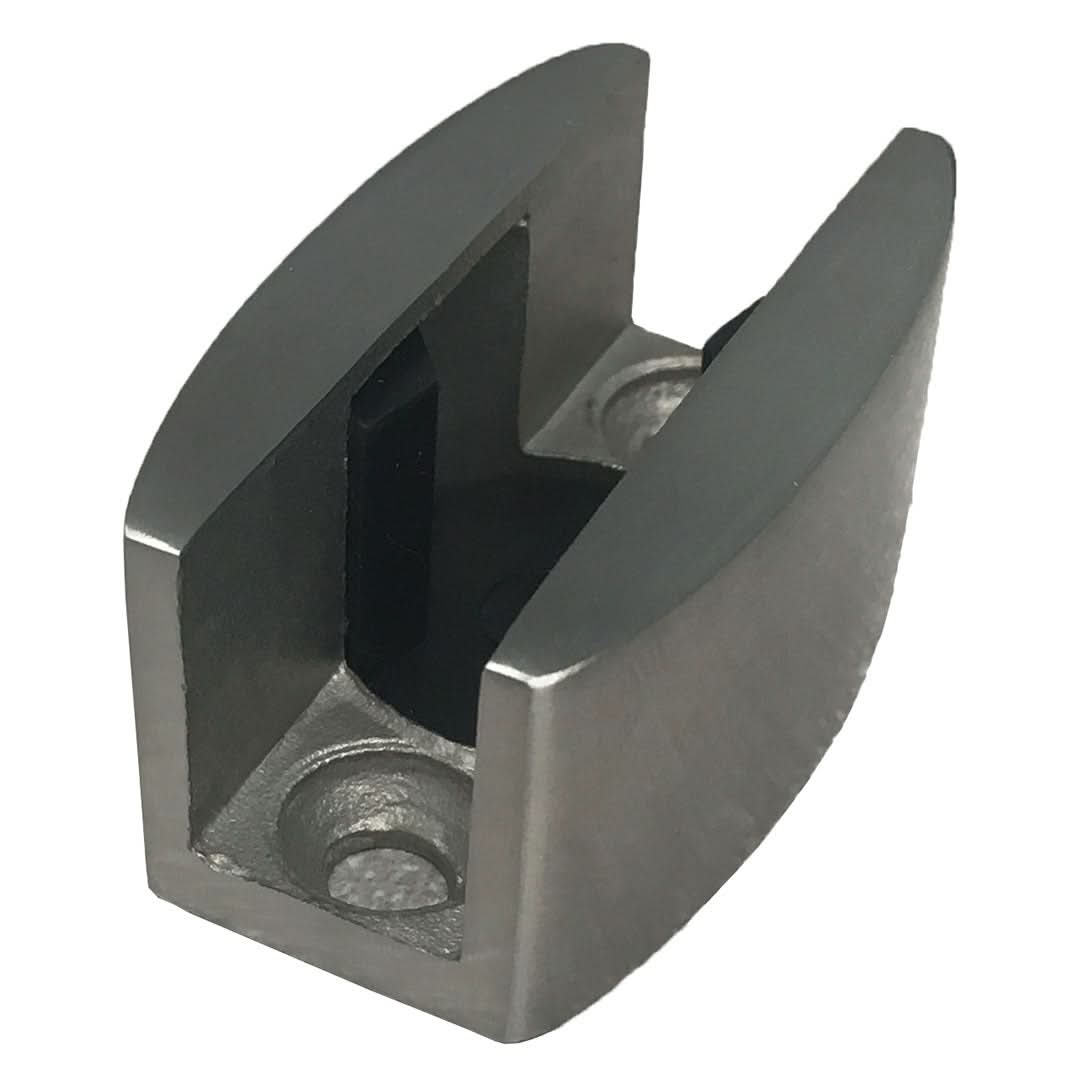

CS Frameless Glass Clamp U Guide for 3/8" & 1/2" Glass

Sold out



If you want a glass door system that works as good as it looks, the glass clamps from Cavity Sliders are just what you need. They connect glass doors to the carriage on the track in a sleek, aesthetically pleasing way. The glass clamps are compatible with all of the standard Cavity Slider tracks, so they’re easy to install because they’re designed to go together. They feature a stainless steel body that’s strong and durable. Plus the glass clamps have a quick release system which allows you to easily remove the glass door from the track if you need to.

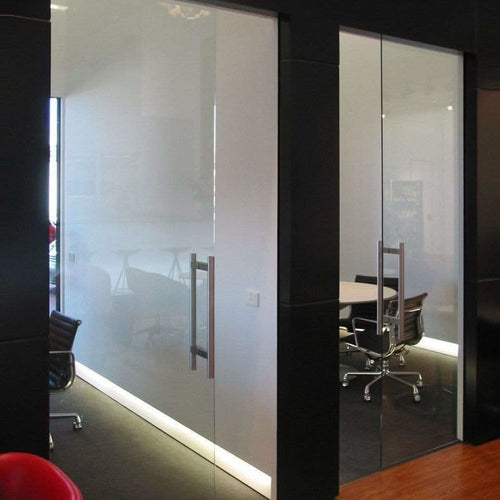

Glass doors look sleek and beautiful—especially when paired with premium hardware. Glass doors work well for patios, conference rooms, and waiting rooms. They add a modern, elegant mood to any space and maximize natural light.



The glass clamps are weight rated up to 500lbs per clamp. M8 carriages are recommended for glass clamps. A SofStop can be used if the door is within the load capacity (176lbs). Two track stops should be used with glass doors.



Available in five pre-cut lengths:

  • 2ft
  • 3ft
  • 4ft
  • 5ft
  • 6ft



Your glass doors should be the same width as the clamp for the smoothest operation and most beautiful finished look. If your glass doors are slightly larger than the clamp, then you can center the clamp on the door.

When it comes to installation, you can choose between concealing the clamps or showing them. You can control this by adjusting the head sides of your corresponding low profile track to cover the glass clamps. See installation instructions for more information.

TECHNICAL INFORMATION:



RealCraft Classic Flat Track Sliding Door Hardware

Frameless Clamp Kits for Sliding Glass Pocket Doors

Starting At: $1,663

RealCraft is proud to to offer the Cavity Sliders Frameless Glass Clamp for smooth-running and reliable sliding glass pocket doors. The glass clamp offers a low-profile, elegant look, and can be hidden inside the pocket door track itself.



The glass clamp is one part of a sliding glass pocket door sytem. It is compatible with all of our standard Cavity Sliders track systems (Pocket Door Frame Kits, Ceiling Flush Tracks, Low Profile Tracks, and Wall Mount Kits). This clamp is designed for frameless glass sliding doors with 3/8” or 1/2” glass thickness and requires M8 Carriage Packs or Double Action Sofstops.

Step 1: Select Your Track System (required)*

Glass Clamp compatible hardware: pocket door, ceiling flush, and low profile track pictures
Sold out

Step 2: Select Your Glass Clamp (required)*

Sold out

Recommended Accessories

Soft Stop Barn Door Hardware for soft and smooth barn door operations. Developed by RealCraft

CS Frameless Glass Clamp U Guide for 3/8" & 1/2" Glass

Sold out



If you want a glass door system that works as good as it looks, the glass clamps from Cavity Sliders are just what you need. They connect glass doors to the carriage on the track in a sleek, aesthetically pleasing way. The glass clamps are compatible with all of the standard Cavity Slider tracks, so they’re easy to install because they’re designed to go together. They feature a stainless steel body that’s strong and durable. Plus the glass clamps have a quick release system which allows you to easily remove the glass door from the track if you need to.



Glass doors look sleek and beautiful—especially when paired with premium hardware. Glass doors work well for patios, conference rooms, and waiting rooms. They add a modern, elegant mood to any space and maximize natural light.



The glass clamps are weight rated up to 500lbs per clamp. M8 carriages are recommended for glass clamps. A SofStop can be used if the door is within the load capacity (176lbs). Two track stops should be used with glass doors.



Available in five pre-cut lengths:

  • 2ft
  • 3ft
  • 4ft
  • 5ft
  • 6ft



Your glass doors should be the same width as the clamp for the smoothest operation and most beautiful finished look. If your glass doors are slightly larger than the clamp, then you can center the clamp on the door.

When it comes to installation, you can choose between concealing the clamps or showing them. You can control this by adjusting the head sides of your corresponding low profile track to cover the glass clamps. See installation instructions for more information.

TECHNICAL INFORMATION:
