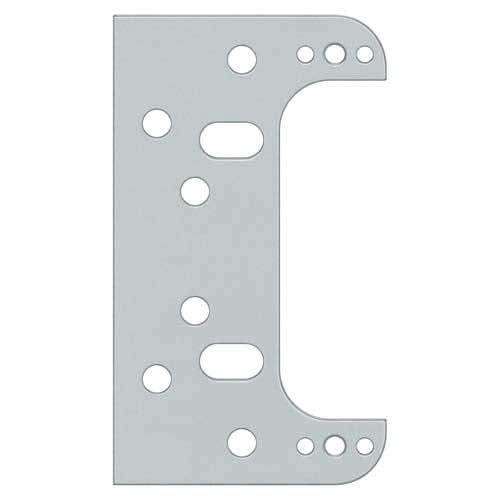

Ansemi Fixing Plate for residential doors with casing frames. Zinc Plated finish.
Price per each. Include screws and shims.Adjust quantities after adding to cart.
Compatible with:
| AN 140 3D | AN 150 3D | AN 170 3D ALU |
| AN 140 3D ALU | AN 150 3D ALU | AN 170 3D 40 |
| AN 160 3D | AN 150 3D 28 | AN 170 3D 44 |
| AN 160 3D ALU | AN 150 3D 40 | AN 107 3D C40 |
| AN 180 3D | AN 150 3D 44 | AN 107 3D C60 |
| AN 130 2D | AN 170 3D | AN 108 3D SC45 |
Standard 3/4" frame
Standard installation requires a fixing plate. This is not required when using a block
frame. Affix the fixing plate with the appropriate screws (not included) behind the
casing frame. Affix the hinge by using the enclosed M5 screws. To ensure flush hinge
installation, shims are provided with the fixing plate.
Suitable for:
| Type of door leaf | timber |
| Rebate | unrebated |
| Type of frame | casing frame |
Alsemi Hinge Fixing Plate - Installation Overview
Anselmi Hinge Fixing Plate - Data Sheet

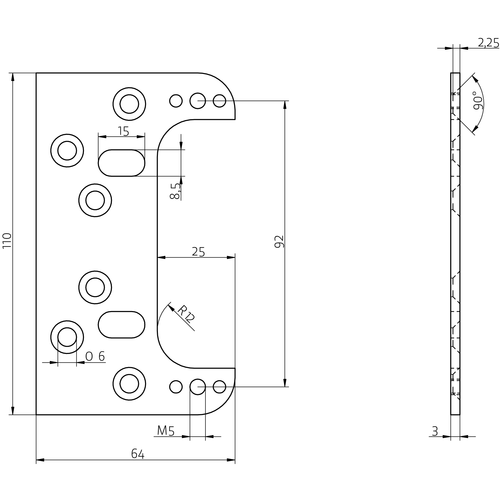

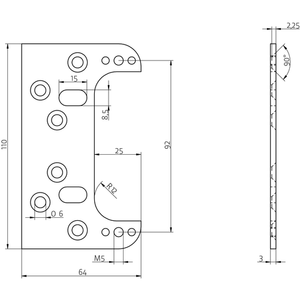

Anselmi Hinge Fixing Plate - Drawings
