Arrow Strap Hinges

Name: Arrow Strap Hinges
Brand: PBB
SKU: HIN-1036.00037
Price: 384.0 USD
Availability: InStock

$384.00

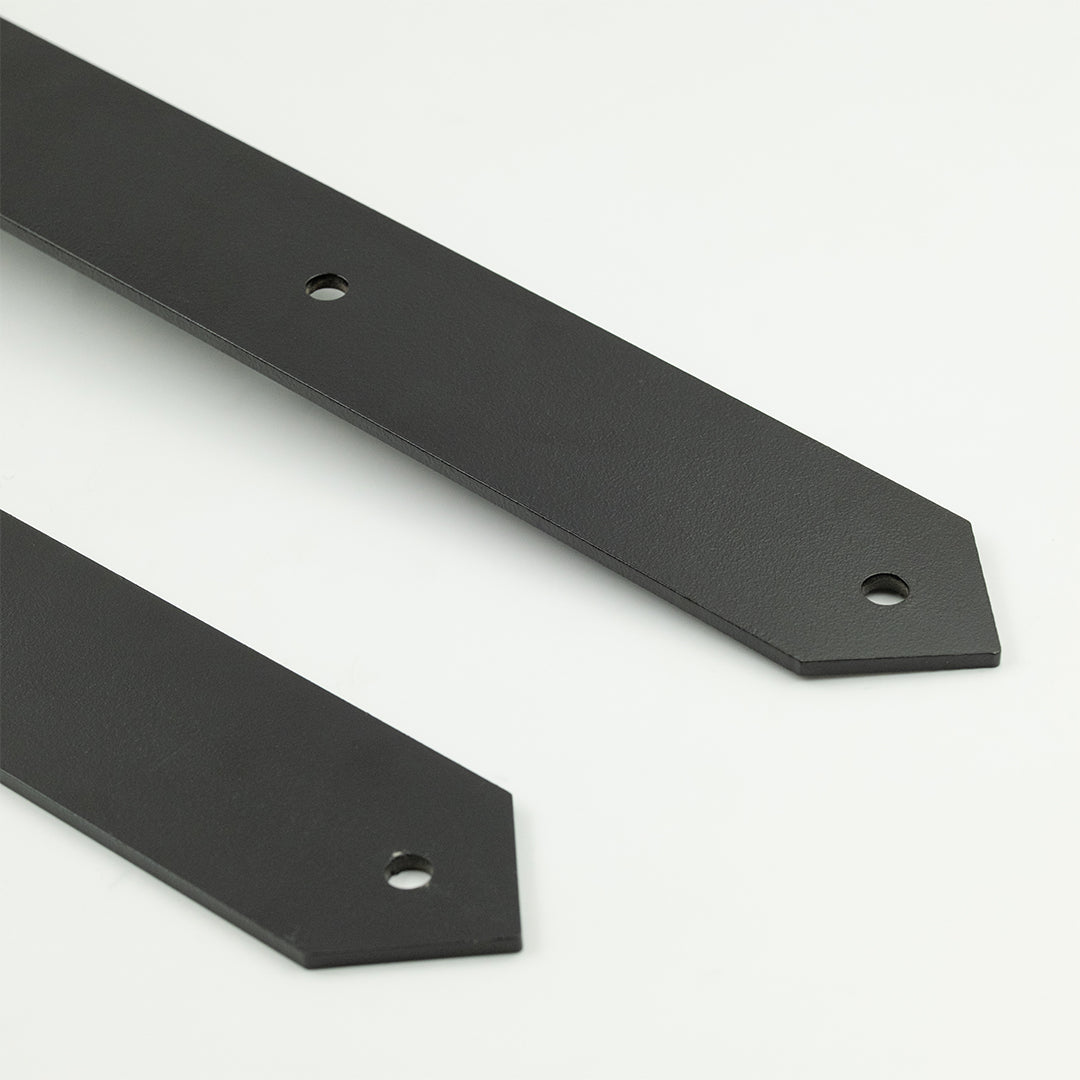

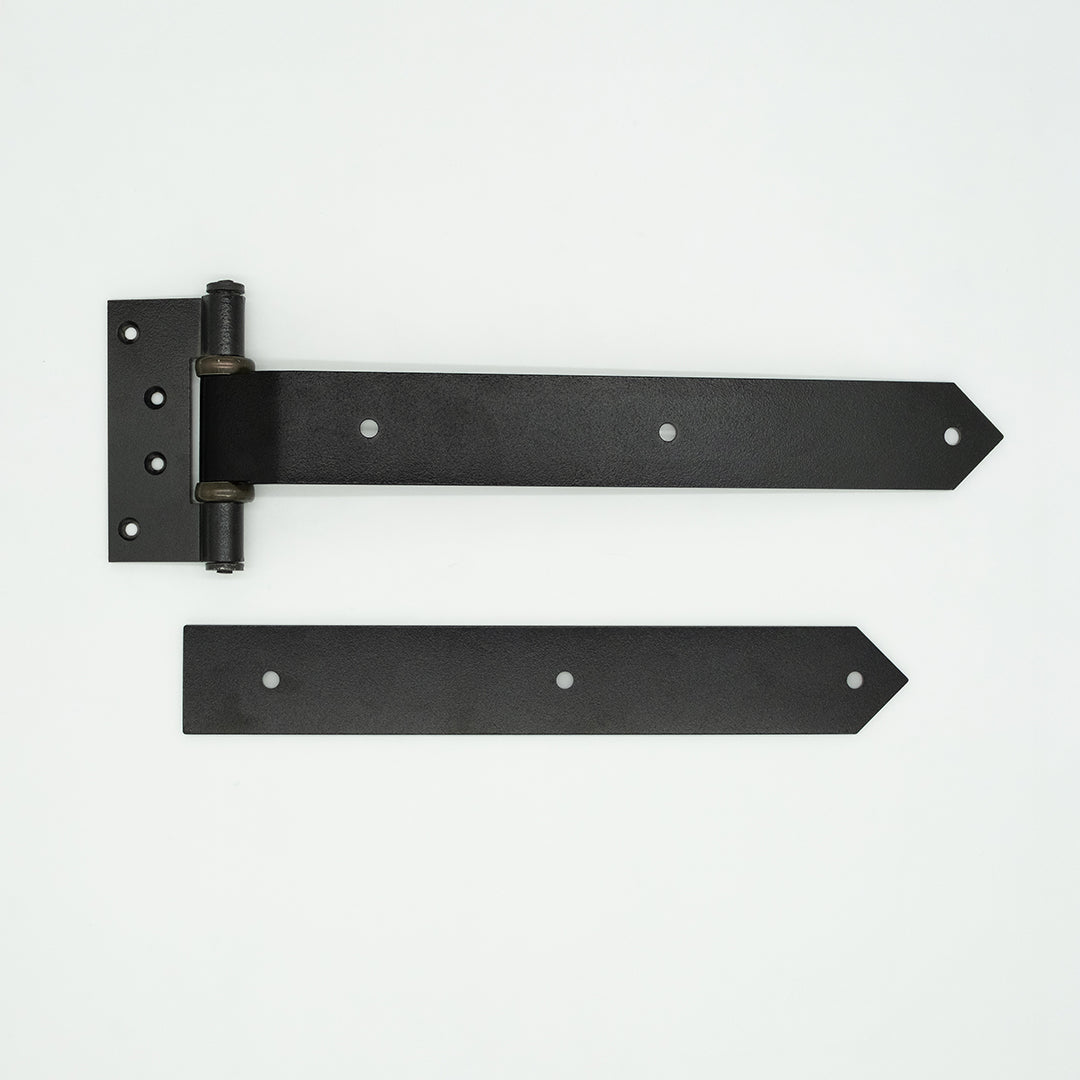

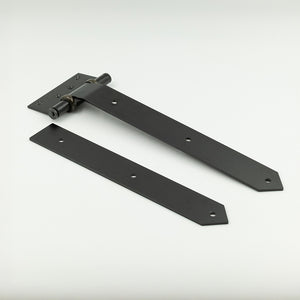

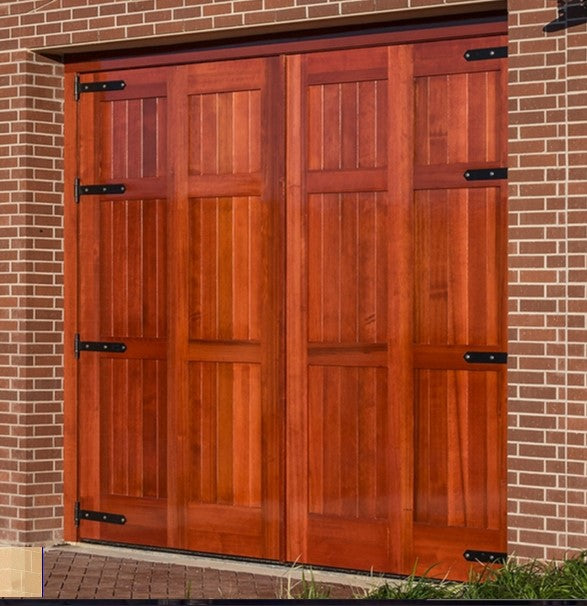

Create a traditional look with these sleek arrow strap hinges. The black powder-coated finish coordinates with any wood species or paint color. The base material is galvanized steel, which makes these hinges ideal for exterior use. A marine-grade stainless steel version (also in black powder coat finish) is available to special order. Please call us for details.

Product Details:

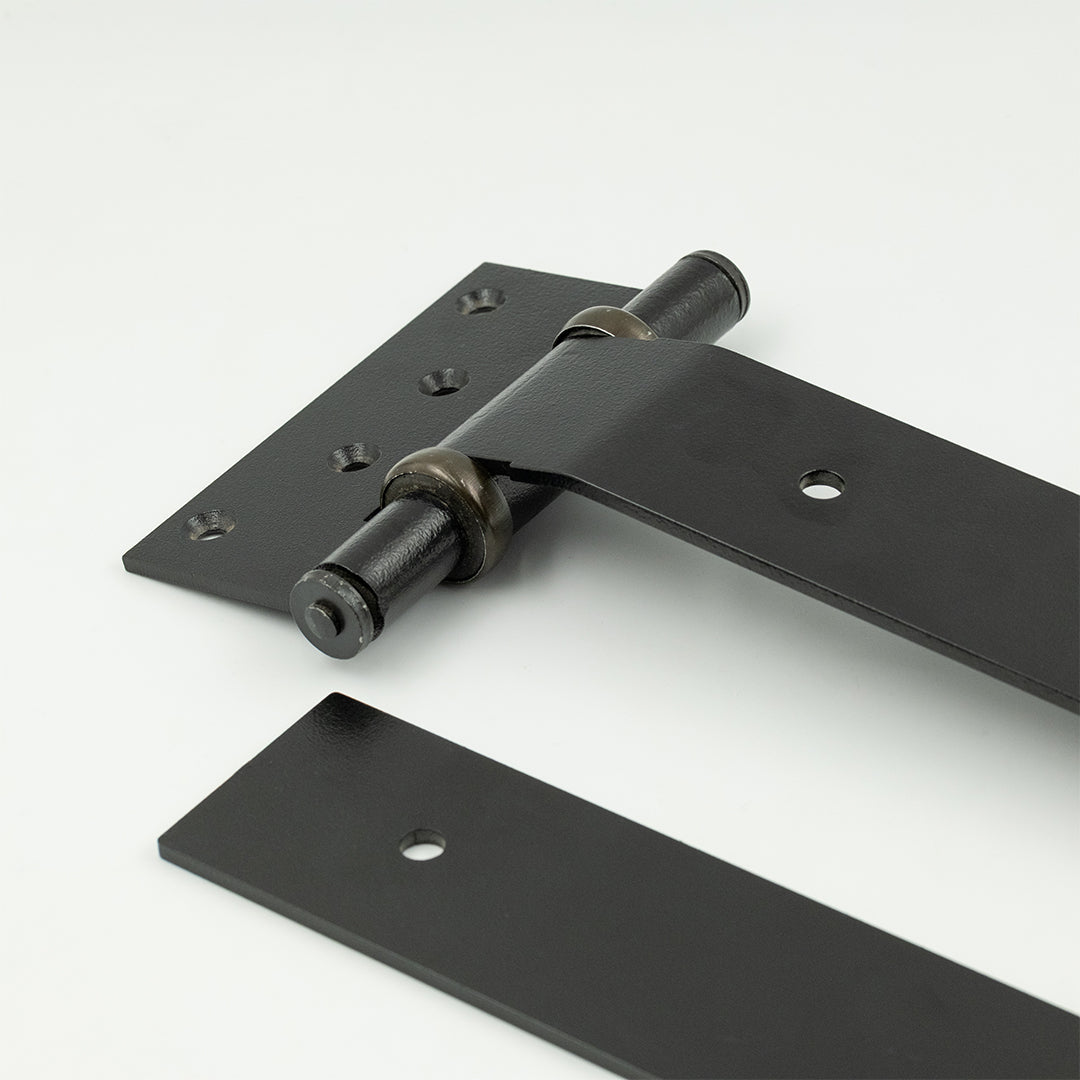

Hinge type: pintle pin non-removable strap hinges
Swing direction: Outswing
Sizes: 18", 24", 36"
Comes with back plate and blackened stainless steel thru-bolts
Marine-grade steel version is non-refundable

This item is sold individually. Adjust quantity after adding to cart.

Click Here For Shipping Lead Times

Weight Rating

This chart is arranged in ascending order of capacity, both in door weight and hinge moment.

1. To calculate your proper hinge, you'll need the following information:

a. Weight of the door in pounds

b. Height of the door in feet

c. Width of the door in feet

2. Calculate the moment on the hinge set: Multiply the weight of the door by the width of the door.

3. Locate the column showing the door height and read down the column to the row indicating the height of the specified door.

Read across the row, find the proper hinge model which has values matching the application. The row will also tell you the number of hinges necessary.

Important Note: The specified door weight and hinge moment must be less than or equal to the published values in the chart for the model of hinge used.

Number of hinges	Maximum Door Height (Feet)	Maximum weight/moment (lbs)
2	4	1104/842
3	8	1657/1965
4	12	2209/3088
5	16	2761/4210
6	20	3313/5333
7	24	3866/6456

Spec Sheets:

18" Arrow Strap Hinge

24" Arrow Strap Hinge

36" Arrow Strap Hinge
