Box Track Heavy Duty Bypass Barn Door Hardware Kit (600 lb)

Details Features Overview FAQ Reviews Guides Variants Craftsmanship
Skip to product information
Black Box Rail 600lb Bypass Hardware installed on brown barn door
  • Black Box Rail 600lb Bypass Hardware installed on brown barn door
  • Black Box Rail 600lb Bypass Hardware installed on brown barn door
  • Galvanized Box Rail 600lb Bypass Hardware installed on brown barn door
Box Track Heavy Duty Bypass Barn Door Hardware Kit (600 lb)

Box Track Heavy Duty Bypass Barn Door Hardware Kit (600 lb)

Ships same day or next day

The Heavy Duty Bypass Sliding Barn Door Hardware holds doors up to 600lbs (per pair of trolleys) and sets the industry standard for smooth operation and longevity. Quiet, versatile, and suitable for a variety of applications, it's available in side or ceiling mounted options.

Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

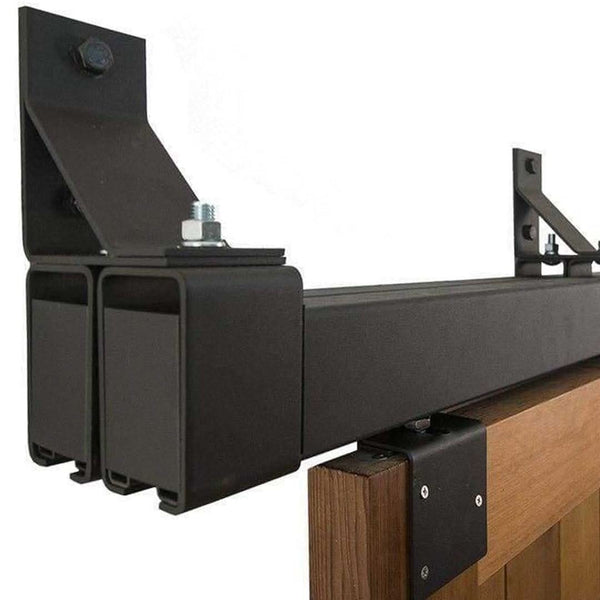

600lb Bypass Box Rail Track

600lb Bypass Box Rail Track

Required

Select a track length at least twice the width of your door.

Rail lengths over 10ft will come in multiple pieces that can be assembled on site and easily cut down for specific needs. For longer rail lengths, custom cut sizing, and custom powder coated colors give us a call.

Additional shipping charges apply for tracks over 8ft.

Contact us or call (253)-853-3815 for help.

Step Two

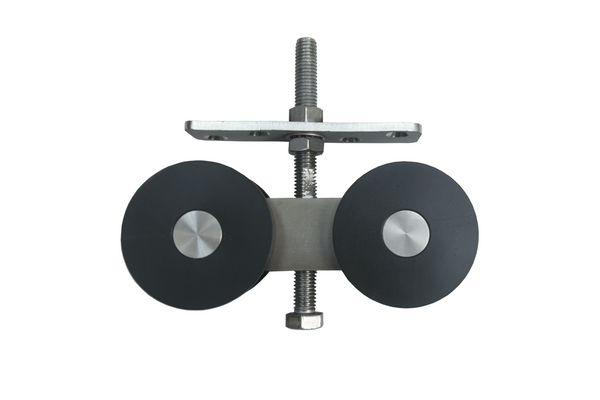

600lb Trolley Kits

*Maximum of 2.

600lb Trolley Kits

Required

Select the number of doors that will be hanging on the track. We supply 2 trolleys per door.

Doors must be at least 1.75" thick.

How Many Doors?

*Maximum of 2.

Recommended Accessories
Easy Mount Header Board

Removes the need for wood blocking in the wall.
Easy Mount Header Board

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

Easy Mount Header Board

Quantity*

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.
Track Accessories
Floor Guides
C-Guide Sliding Barn Door Floor Guide Adjustable Width

*1 Per Door Slab

C-Guide Sliding Barn Door Floor Guide Adjustable Width

Quantity*

*1 Per Door Slab
Handles + Pulls
Stand Off + Mounting Rings

Your Hardware Kit

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

Product Information
  • Application: Interior + Exterior
  • Hardware Material: Powder-coated Black or Galvanized
  • Track System: Single (Bi-parting not recommended for bypass systems)
  • Weight Capacity (per pair of hangers): 600lbs
  • Soft Stop Compatibility: Compatible
  • Mounting: Wall/Side/Soffit Mounted
  • Country of Origin: United States (Gig Harbor, WA)
What's In the Kit?
  • Box Track
  • Ball-Bearing Trolley Hangers (associated parts included)
  • Mounting Brackets
  • End Stops
  • Nuts & Washers (for trolleys)
  • End Blinds (these cover the rail ends)
Sizing Guide

Sizing For A Single Barn Door

Multiply your door width by two to get the correct track length.

Example: For a 3' wide barn door, you'd need a 6' barn door hardware kit.

If your door requires a track length that falls between sizes, you can round up to the next size and add the adjustable end stop. This will allow you to choose where the doors tops on the track. We are also able to cut tracks to your specifications.

For custom track lengths, call us at (253) 853-3815.

For more details, see How to Measure For a Barn Door - An Illustrated Guide.
Accessory Information
  • Wall Mounted Roller Guide: Heavy-duty, reliable, and optimal for thicker doors or in rooms where you can't drill into the floor.

  • C-Guide: A sleek and elegant floor guide. If you have to see it all the time, it might as well be beautiful.
Shipping Protection

We've partnered with UPS Capital to introduce an advanced shipping protection plan. This plan shields your purchases against any unforeseen events during transit. Guard your package against loss, theft, or damage. Visit our Shipping Protection page to learn more.
Technical Guides

There are several possible mounting and door configuration options. Multiple doors can be added to the track. Simply make sure to change the “quantity of doors on track” to the number of doors you’ll be using, so we can send you the hardware you’ll need.

  • Side Mount: the hardware attaches to the wall
  • Soffit Mount: the hardware attaches to the ceiling or soffit
  • Bypassing:Two or more doors that slide in front of each other in their respective tracks
  • Single Door: One door on a single track
  • Bi-parting: two doors on a single track. The doors meet at the center of the track.

Technical guides:

Still have questions? Click the chatbox on the bottom right to speak with a sales associate, or call us at (253) 853-3815. We are happy to help!
