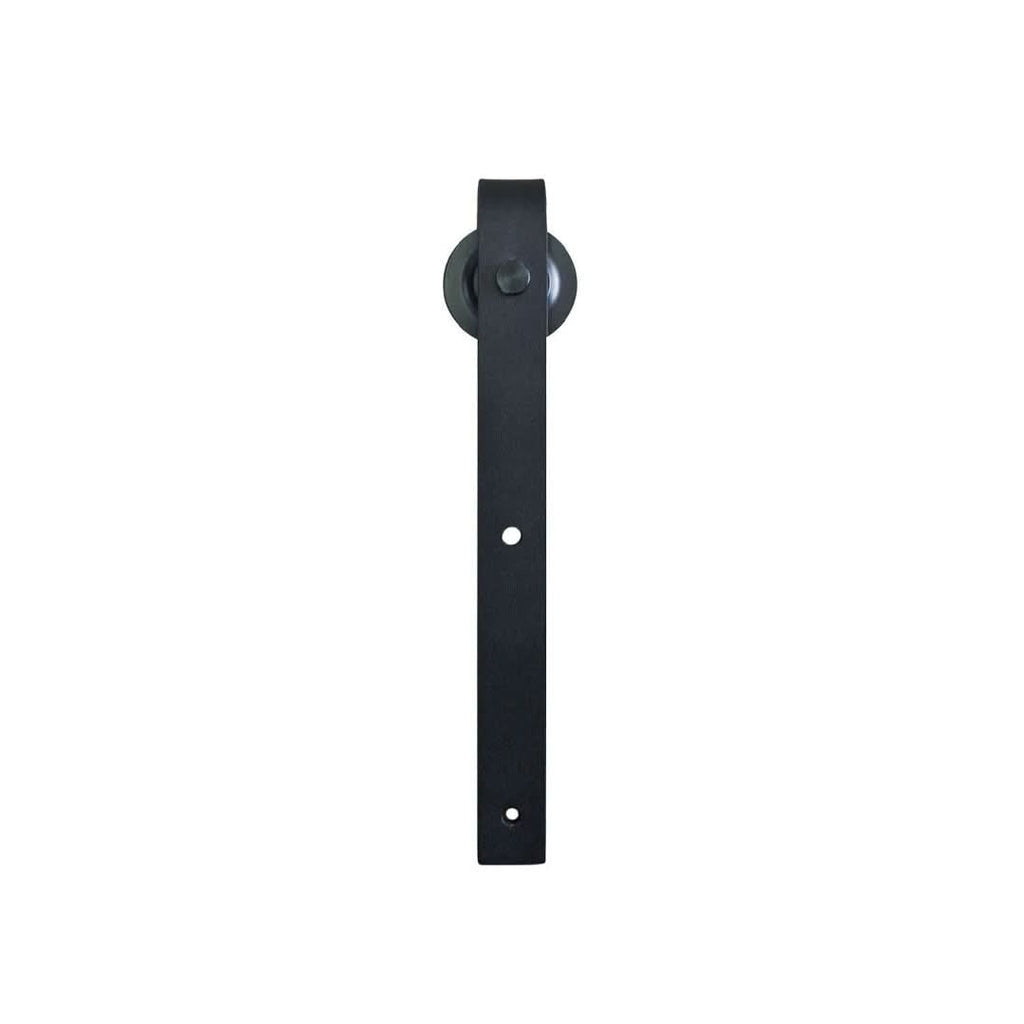

Classic Mini Hangers
  • Classic Mini Hangers
  • Classic Mini Hangers
Mini Classic Sliding Cabinet Barn Door Hardware Kit

Mini Classic Sliding Cabinet Barn Door Hardware Kit

Ships same day or next day

We created the Mini Classic Sliding Cabinet Barn Door Hardware for small doors in the home or office, like bathroom or kitchen cabinets, bookshelves, or office storage. It features the same sleek design as our Classic Flat Track barn door hardware, with hangers that wrap over the door face and exposed wheels that coordinate seamlessly with any décor style.

Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

Flat Track

Flat Track

Required

Select a track length at least twice the width of your door.

For bi-parting applications, track length should be twice the width of both doors combined.

Step Two

Mini Hangers

*Maximum of 2.

Mini Hangers

Required
How Many Doors?

*Maximum of 2.

Recommended Accessories
Easy Mount Header Board

Removes the need for wood blocking in the wall.
Easy Mount Header Board

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

Easy Mount Header Board

Quantity*

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.
Track Accessories
Floor Guides
Handles + Pulls
The Narrows Sliding Barn Door Handles

*1 Per Door Slab

The Narrows Sliding Barn Door Handles

Quantity*

*1 Per Door Slab
Stand Off + Mounting Rings

Your Hardware Kit

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

Product Information
  • Application: Interior
  • Hardware Material: Black
  • Track System: Single or Bi-Parting
  • Weight Capacity (per pair of hangers): 100 lbs
  • Soft Stop Compatibility: Not Compatible
  • Mounting: Side Mounted
  • Country of Origin: United States (Gig Harbor, WA)
What's In the Kit?
  • Solid steel rail (May ship in pieces depending on selection)
  • 2x hangers with wheels per each door on the track
  • All required nuts and bolts
  • Anti-jump plate
  • T-Guide for guiding your door
  • 2x stationary end stops for each set of 2 hangers

Please note that doors are not included with the purchase of hardware.
Sizing Guide

Sizing For A Single Cabinet Door

Multiply your door width by two to get the correct track length.

Example: For a 3' wide barn door, you'd need a 6' door hardware kit.

Sizing For Bi-Parting Cabinet Doors

You'll need to add the door widths together and then multiply that sum by two.

Example: For two 3' wide bi-parting doors, you'll need a 12' track. When you make your selections in the menu, change the quantity of doors on track to the correct amount. That way we can send you all the hangers and additions you'll need.

If your door requires a track length that falls between sizes, you can round up to the next size and add the adjustable end stop. This will allow you to choose where the doors tops on the track. We are also able to cut tracks to your specifications.

For custom track lengths, call us at (253) 853-3815.

For more details, see How to Measure For a Barn Door - An Illustrated Guide.
Accessory Information

  • Adjustable End Stop: Choose exactly where you want your door to stop on the track. This is an optimal way to create space for light switches.

  • Standoff Rings: Make room for wall molding so the door has optimal clearance.

  • Drywall Anti-Crushing Rings: Keep the track hanging straight instead of leaning away from the wall over time.
