Name: Ultra-Quiet Brass Hexagon Sliding Barn Door Hardware
Brand: RealCraft
Price: 1368.00 USD
Availability: InStock

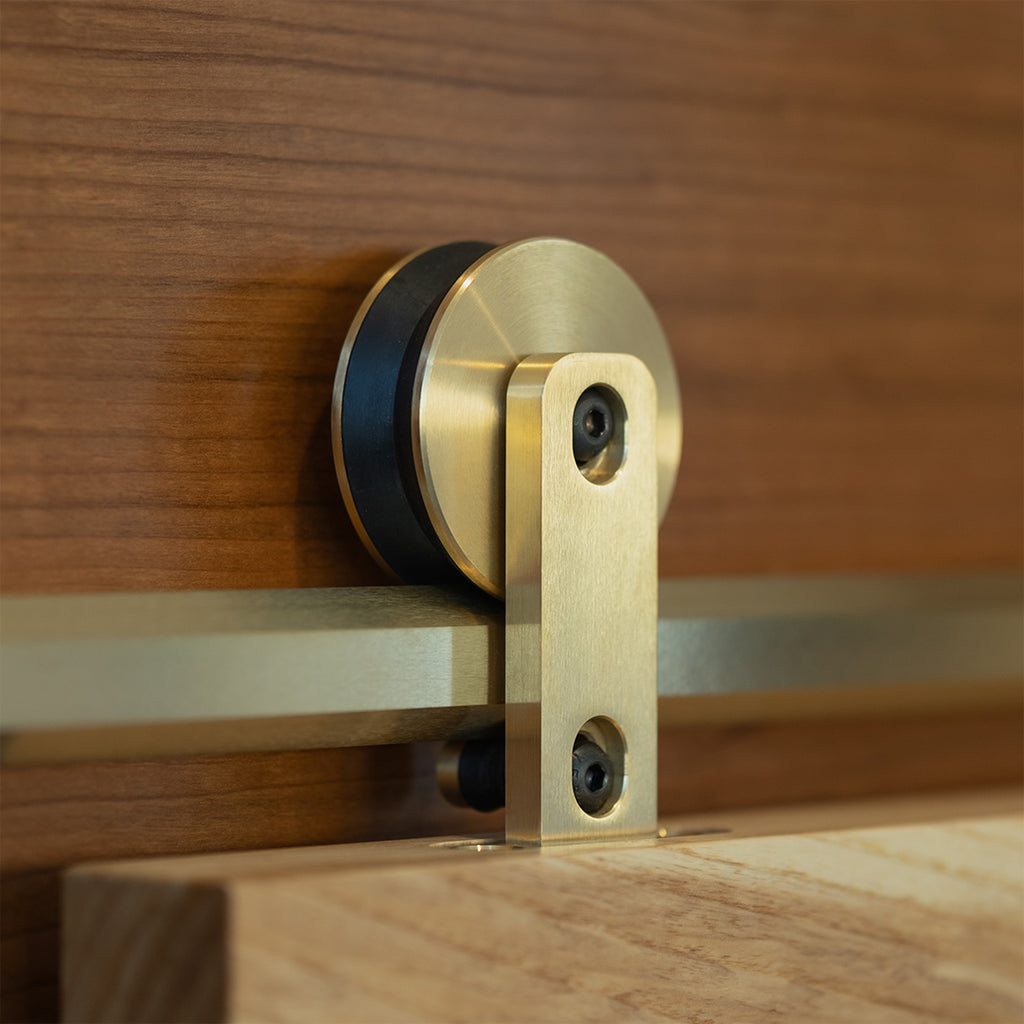

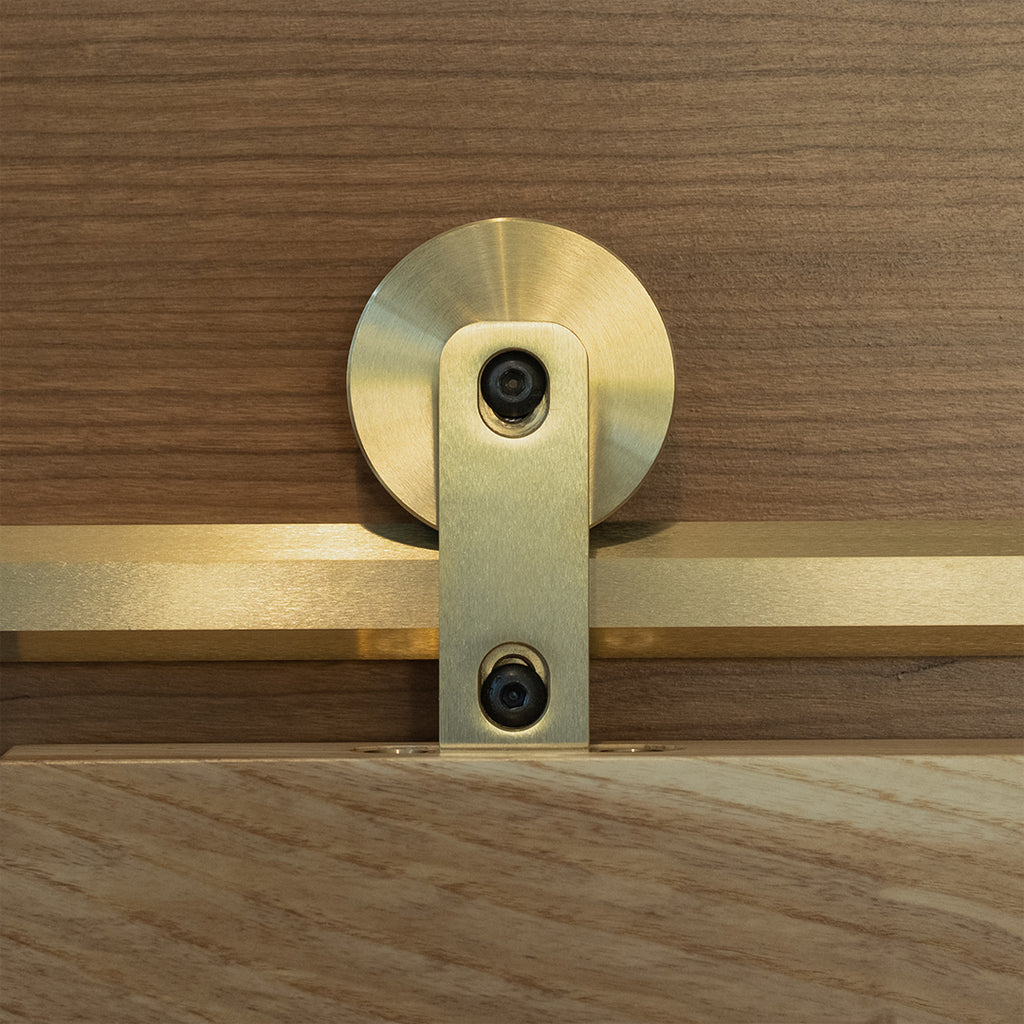

Swiss Rod Brass hanger in context side angle

Ultra-Quiet Brass Hexagon Sliding Barn Door Hardware

Ships same day or next day

Up to 95% quieter than other barn door hardware and rendered in luxurious solid brass. This smooth-rolling kit combines style and performance. The secret is the hexagon shape of the bar, which allows the wheels to roll on a single point of contact. The hexagon shape of the rail allows brushed solid brass to catch the light for a softly shimmering, glamorous touch. Finally, barn door hardware sophisticated enough for luxe interiors.

Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

Hexagonal Bar Track

Required

Note: to guarantee the integrity of the hardware kit, only the hangers are hammered.

Select a track length at least twice the width of your door.

For bi-parting applications, track length should be twice the width of both doors combined.

Have questions? Need a custom track length, finish, or header board?

Length

Step Two

*Maximum of 2.

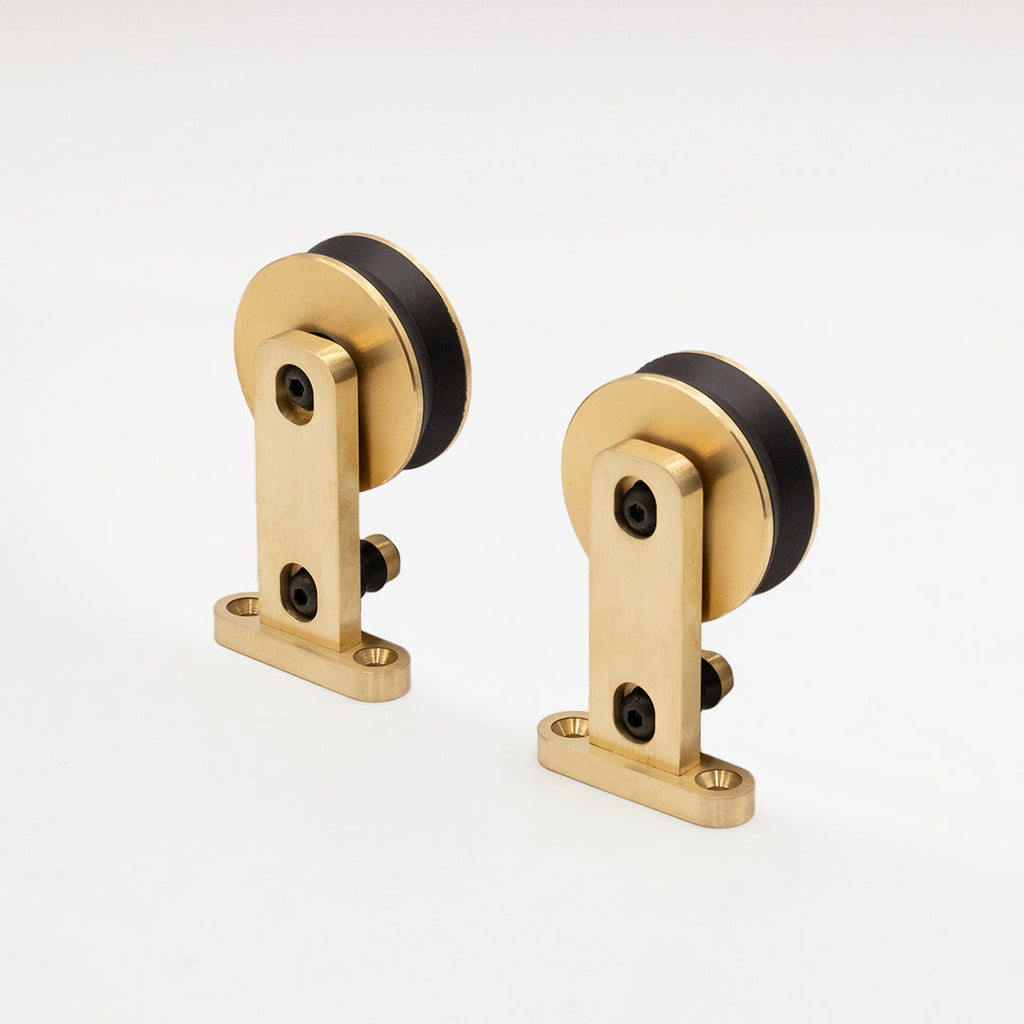

Hexagon Bar Hangers

Required

Note: 1/2" Standoff Rings are REQUIRED if the mounted doors are 2-1/4" or thicker.

Full Polymer Hush Wheels:
The entire wheel is made of black polymer "hush" material so it will glide along the track quietly.

Steel Matched Wheels:
For the most cohesive aesthetic, these wheels match the finish color selected.

Steel Matched Wheels with Hush Insert:
Wheels are made of solid steel with a powder-coated finish with a black polymer insert where it makes contact with the track. This helps the wheels glide along the track more quietly.

Door Thickness

How Many Doors?

*Maximum of 2.

Removes the need for wood blocking in the wall.

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

Easy Mount Header Board

Length Finish

Quantity*

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

*1 Per Door Slab

C-Guide Sliding Barn Door Floor Guide for doors 1-3/8" Thick

Finish

Quantity*

*1 Per Door Slab

Finish

Quantity*

*1 Per Door Slab

*1 Per 8ft of Track

Drywall anti-crushing rings (pack of 5)

Quantity*

*1 Per 8ft of Track

Your Hardware Kit

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

CHECKOUT

Application: Interior
Hardware Material: Solid Brass
Track System: Single or Bi-Parting
Weight Capacity (per pair of hangers): 150 lbs
Soft Stop Compatibility: Not Compatible
Mounting: Wall/Side Mounted
Country of Origin: United States (Gig Harbor, WA)

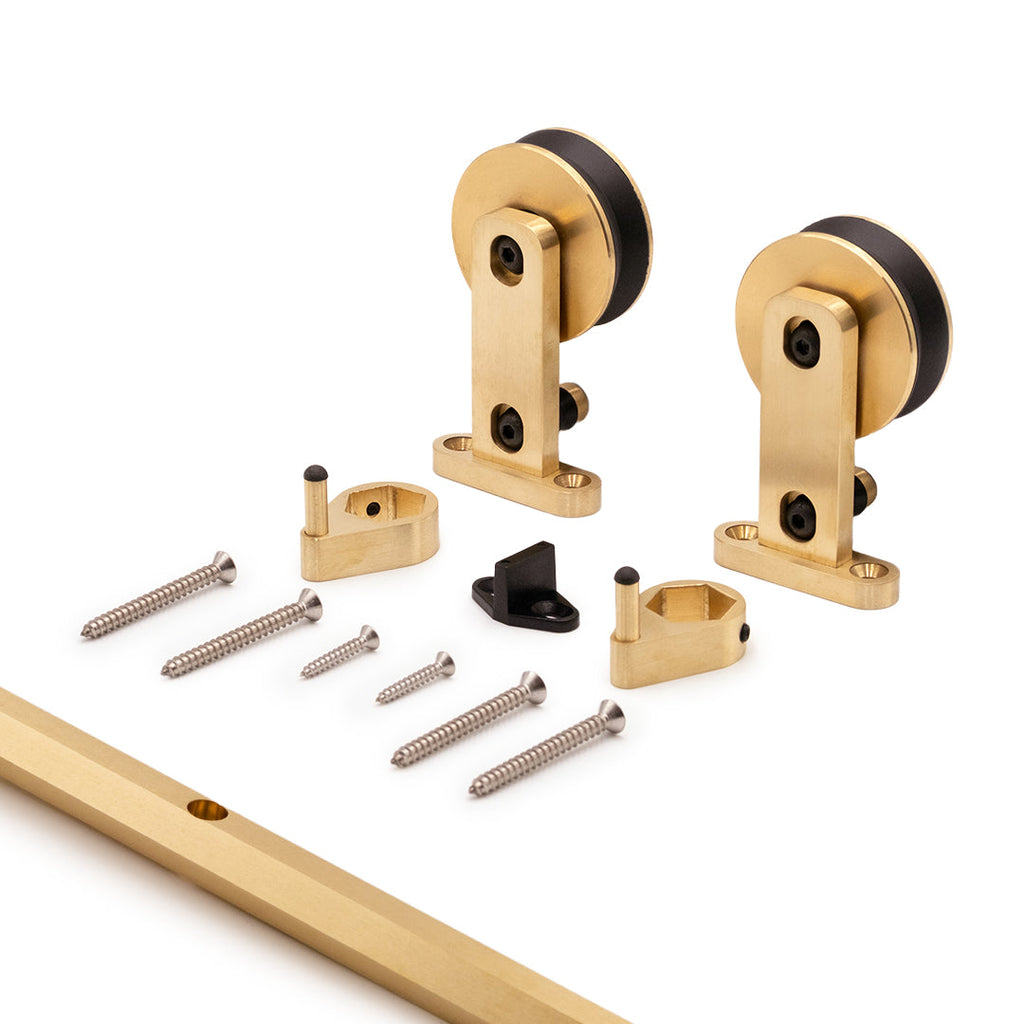

Solid brass hexagonal rail (May ship in pieces depending on selection)
2x hangers with wheels per each door on the track
All required nuts and bolts
Two stationary end stops
T-Guide for guiding your door

Sizing For A Single Barn Door

Multiply your door width by two to get the correct track length.

Example: For a 3' wide barn door, you'd need a 6' barn door hardware kit.

Sizing For Bi-Parting Barn Doors

You'll need to add the door widths together and then multiply that sum by two.

Example: For two 3' wide bi-parting doors, you'll need a 12' track. When you make your selections in the menu, change the quantity of doors on track to the correct amount. That way we can send you all the hangers and additions you'll need.

If your door requires a track length that falls between sizes, you can round up to the next size and add the adjustable end stop. This will allow you to choose where the doors tops on the track. We are also able to cut tracks to your specifications.

For custom track lengths, call us at (253) 853-3815

For more details, see How to Measure For a Barn Door - An Illustrated Guide.

Wall Mounted Roller Guide: Heavy-duty, reliable, and optimal for thicker doors or in rooms where you can't drill into the floor.
C-Guide: A sleek and elegant floor guide. If you have to see it all the time, it might as well be beautiful.

We've partnered with UPS Capital to introduce an advanced shipping protection plan. This plan shields your purchases against any unforeseen events during transit. Guard your package against loss, theft, or damage. Visit our Shipping Protection page to learn more.

Installation Manual (Downloadable PDF)

Still have questions? Click the chatbox on the bottom right to speak with a sales associate, or call us at (253) 853-3815. We are happy to help!

Features At A Glance

Weight Rating

150lbs per pair of hangers

Material

Solid unlacquered brass

Application

Interior

The Right Fit

Fits door thicknesses between 1 1/2" inches to 2 1/4" inches.

Free Shipping

Ships same day to two weeks, with free shipping available in the lower 48

Made Here

Made in Washington State, USA

Frequently Asked Questions

Choose a track at least twice your door width. For example, for a 36 inch door, order a track that measures 72 inches or longer. For two bi-parting doors, add both widths and double the total.

The weight rating for this kit is 150bs per pair of hangers, meaning any door along the track should be no heavier than 150lbs.

This hardware is suitable for interior sliding doors.

Doors are not included with the purchase of hardware.

This hardware is suitable for door thicknesses between 1 1/2" inches to 2 1/4" inches.

This sliding hardware ships within the next business day to two weeks. For the most up-to-date information about lead times, call us at (253)-853-3815.

Yes. For a custom length, finish, or header board, call (253) 853-3815 or email info@realcraft.com.

RealCraft hardware kits are made in Washington State, primarily in the Puget Sound region.

Stock kits are eligible for return. Made-to-order and oversize tracks are final sale. For specifics on your order, contact your sales representative, or info@realcraft.com.
