Stainless Steel Box Rail Exterior Barn Door Bypass Hardware Kit (400 lb)

Details Features Overview FAQ Reviews Guides Variants Craftsmanship
Skip to product information

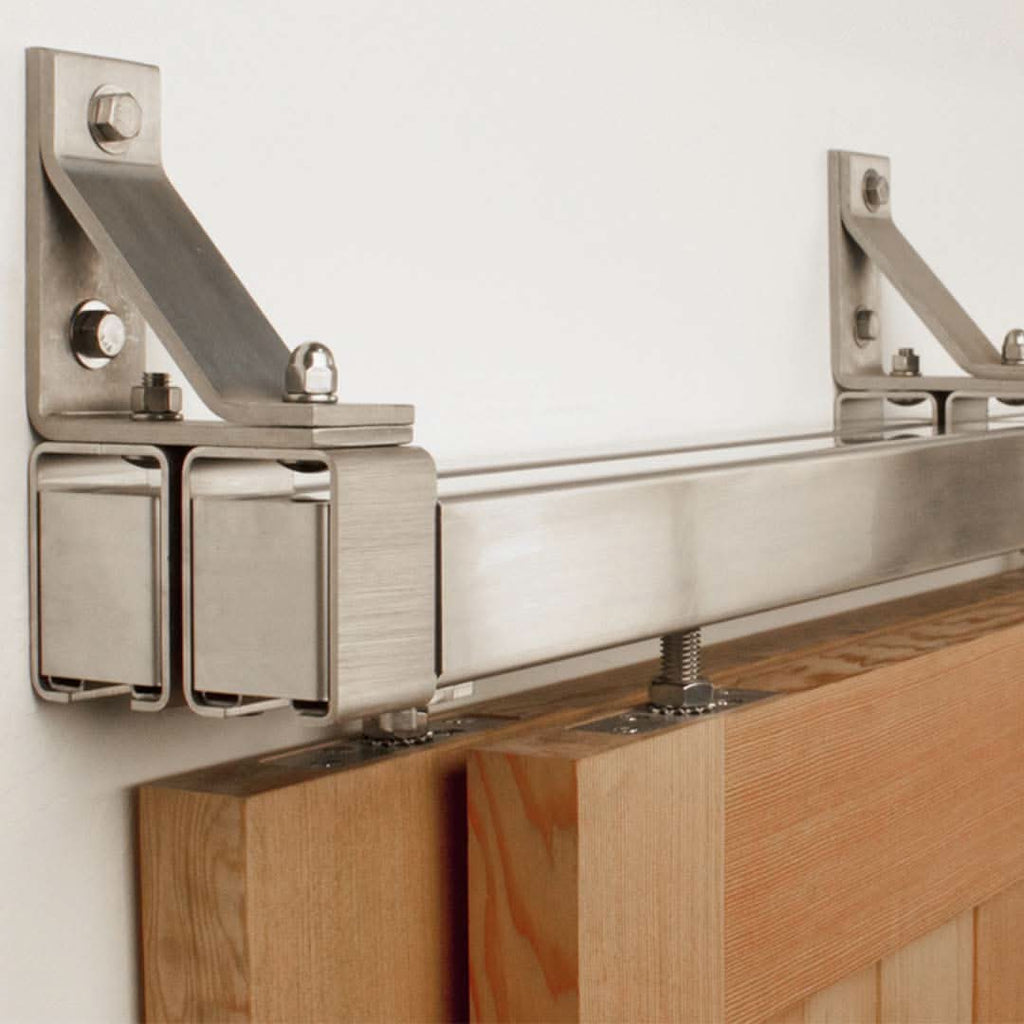

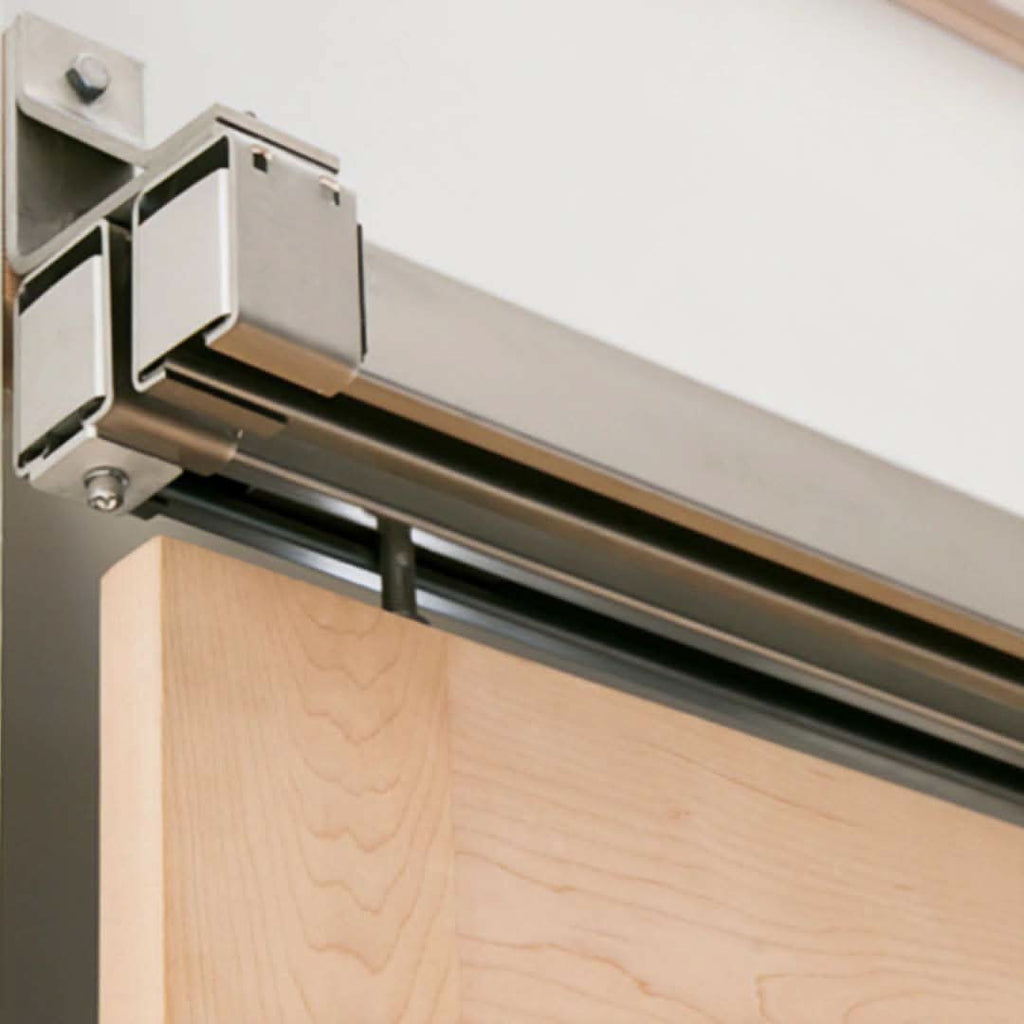

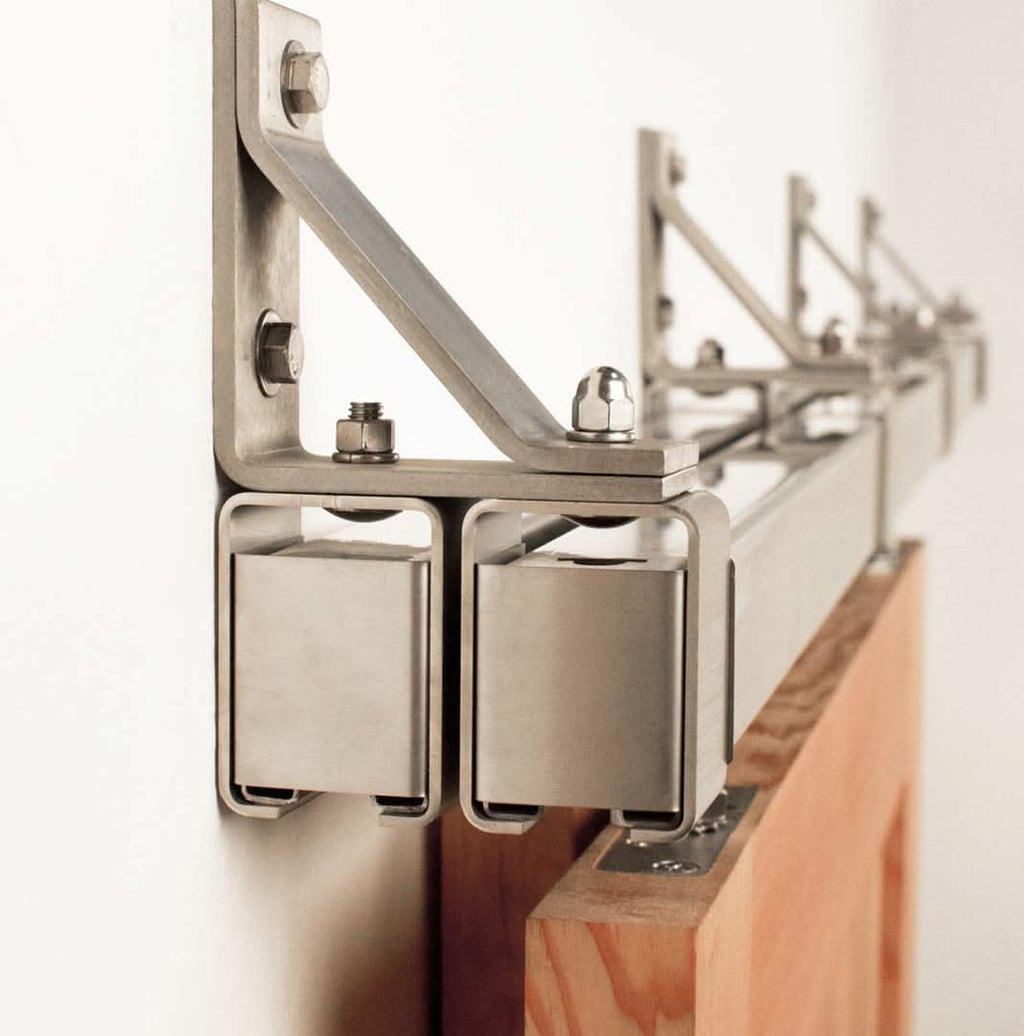

Stainless Steel Box Rail Bypass installed on a beech wood
  • Stainless Steel Box Rail Bypass installed on a beech wood
  • Stainless Steel Box Rail Bypass installed on a beech wood
  • Stainless Steel Box Rail Bypass installed on a beech wood
  • Stainless Steel Box Rail Bypass installed on a beech wood

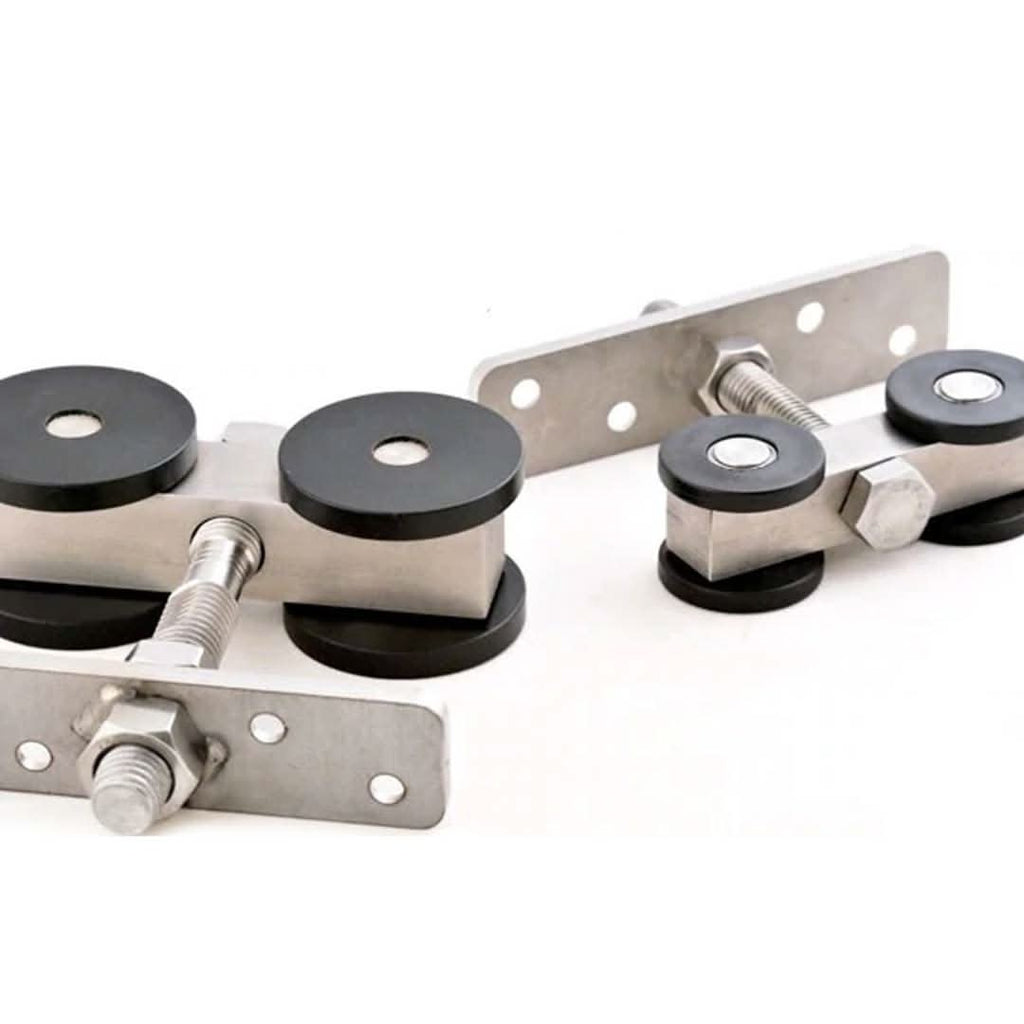

  • Stainless Steel Box Rail Bypass trolleys
Stainless Steel Box Rail Exterior Barn Door Bypass Hardware Kit (400 lb)

Stainless Steel Box Rail Exterior Barn Door Bypass Hardware Kit (400 lb)

Ships same day or next day

Our Stainless Box Rail Bypass Barn Door Hardware features unsurpassed craftsmanship in every component. From the specially designed trolleys to the precisely machined stainless steel track, this is the bypassing barn door hardware you've been searching for.

A bypassing door configuration, where doors slide past each other, takes up less space than double swinging doors, offering an elegant solution for tight spaces.

Bypassing doors work best for concealing large openings, such as closets, office nooks, and openings between kitchens and dining rooms.

Please note that bi-parting bypassing door configurations are not recommended. Biparting bypassing systems require a floor guide in the middle of the door opening, which creates a tripping hazard when doors are open.



Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

400lb Bypass Box Rail Track

400lb Bypass Box Rail Track

Required

Select a track length at least twice the width of your door.

Rail lengths over 10ft will come in multiple pieces that can be assembled on site and easily cut down for specific needs. For longer rail lengths, custom cut sizing, and custom powder coated colors give us a call.

Additional shipping charges apply for tracks over 8ft.

Contact us or call (253)-853-3815 for help.

Step Two

400lb Trolley Kits

*Maximum of 2.

400lb Trolley Kits

Required

Select the number of doors that will be hanging on the track. We supply 2 trolleys per door.

Doors must be at least 1.75" thick.

How Many Doors?

*Maximum of 2.

Recommended Accessories
Easy Mount Header Board

Removes the need for wood blocking in the wall.
Easy Mount Header Board

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

Easy Mount Header Board

Quantity*

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.
Track Accessories
Floor Guides
C-Guide Sliding Barn Door Floor Guide Adjustable Width

*1 Per Door Slab

C-Guide Sliding Barn Door Floor Guide Adjustable Width

Quantity*

*1 Per Door Slab
Handles + Pulls
Stand Off + Mounting Rings

Your Hardware Kit

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

Product Information
  • Application: Interior + Exterior
  • Hardware Material: Stainless Steel Track
  • Track System: Single or Bi-Parting
  • Weight Capacity (per pair of hangers): 400lbs
  • Soft Stop Compatibility: Not Compatible
  • Mounting: Wall/Side/Soffit Mounted
  • Country of Origin: United States (Gig Harbor, WA)
What's In the Kit?
  • Box Track
  • Ball-Bearing Trolley Hangers (associated parts included)
  • Mounting Brackets
  • End Stops
  • Nuts & Washers (for trolleys)
  • End Blinds (these cover the rail ends)
Sizing Guide

Sizing For A Single Barn Door

Multiply your door width by two to get the correct track length.

Example: For a 3' wide barn door, you'd need a 6' barn door hardware kit.

If your door requires a track length that falls between sizes, you can round up to the next size and add the adjustable end stop. This will allow you to choose where the doors tops on the track. We are also able to cut tracks to your specifications.

For custom track lengths, call us at (253) 853-3815.

For more details, see How to Measure For a Barn Door - An Illustrated Guide.
Accessory Information
  • Wall Mounted Roller Guide: Heavy-duty, reliable, and optimal for thicker doors or in rooms where you can't drill into the floor.

  • C-Guide: A sleek and elegant floor guide. If you have to see it all the time, it might as well be beautiful.
Shipping Protection

We've partnered with UPS Capital to introduce an advanced shipping protection plan. This plan shields your purchases against any unforeseen events during transit. Guard your package against loss, theft, or damage. Visit our Shipping Protection page to learn more.
Technical Guides

There are several possible mounting and door configuration options. Multiple doors can be added to the track. Simply make sure to change the “quantity of doors on track” to the number of doors you’ll be using, so we can send you the hardware you’ll need.

  • Side Mount: the hardware attaches to the wall

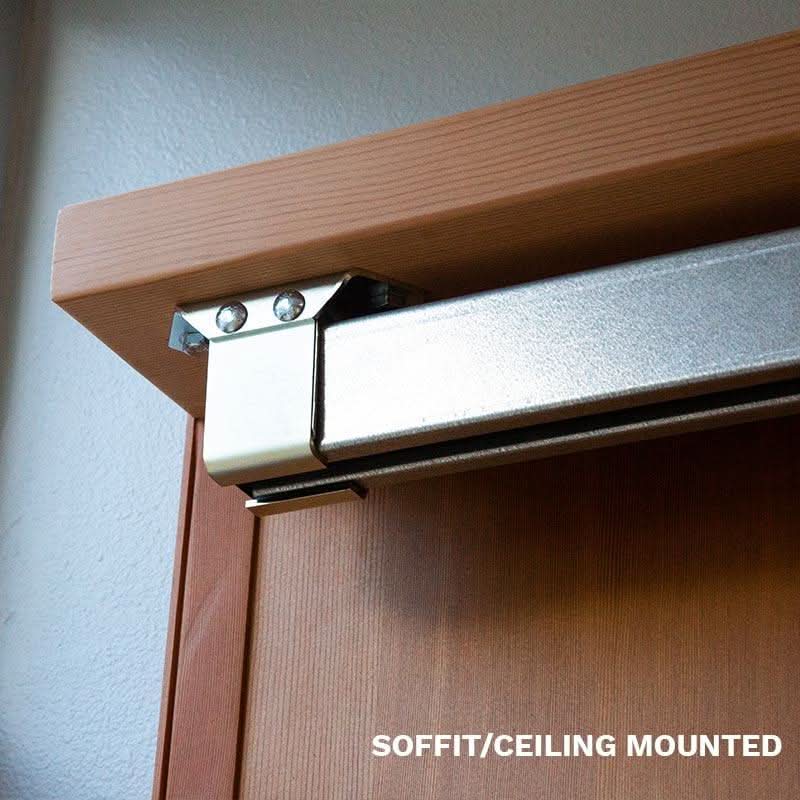

  • Soffit Mount: the hardware attaches to the ceiling or soffit
  • Bypassing:Two or more doors that slide in front of each other in their respective tracks
  • Single Door: One door on a single track

Technical guides:

Still have questions? Click the chatbox on the bottom right to speak with a sales associate, or call us at (253) 853-3815.
