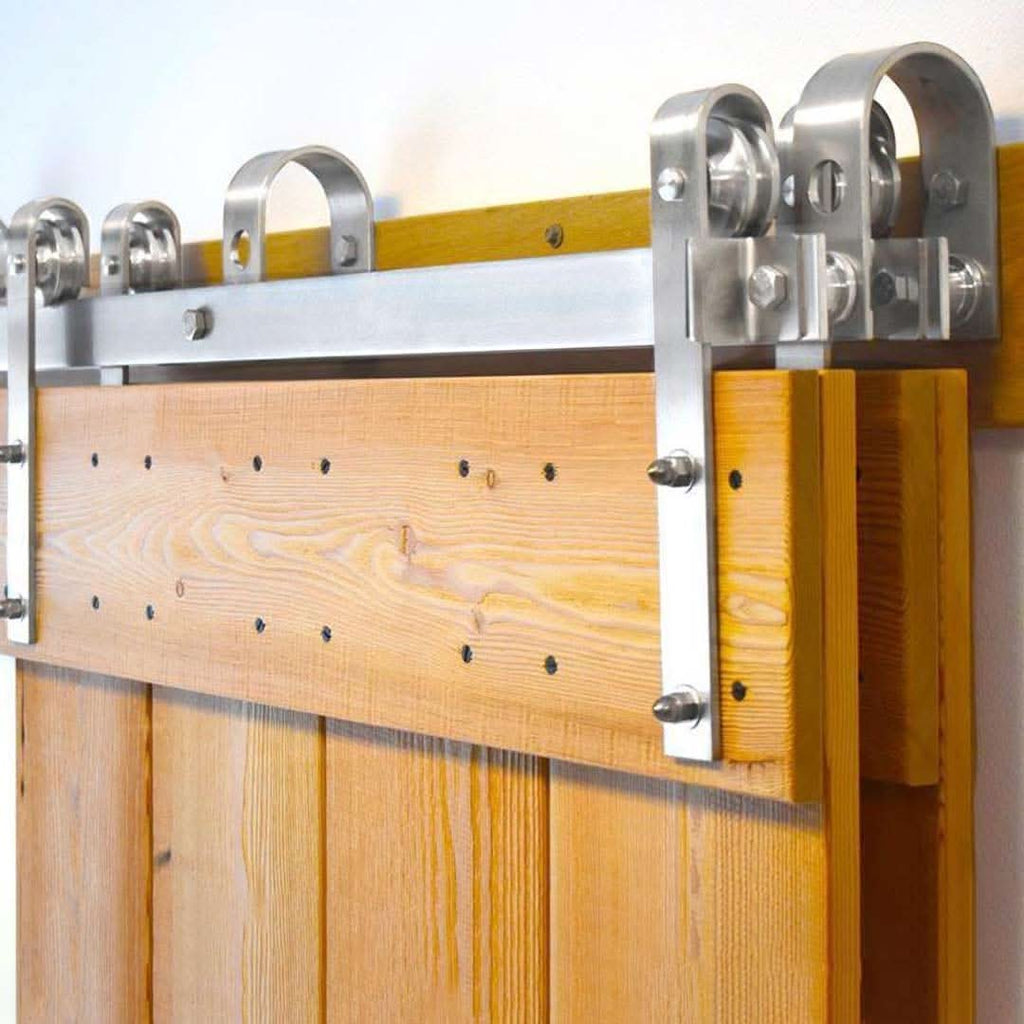

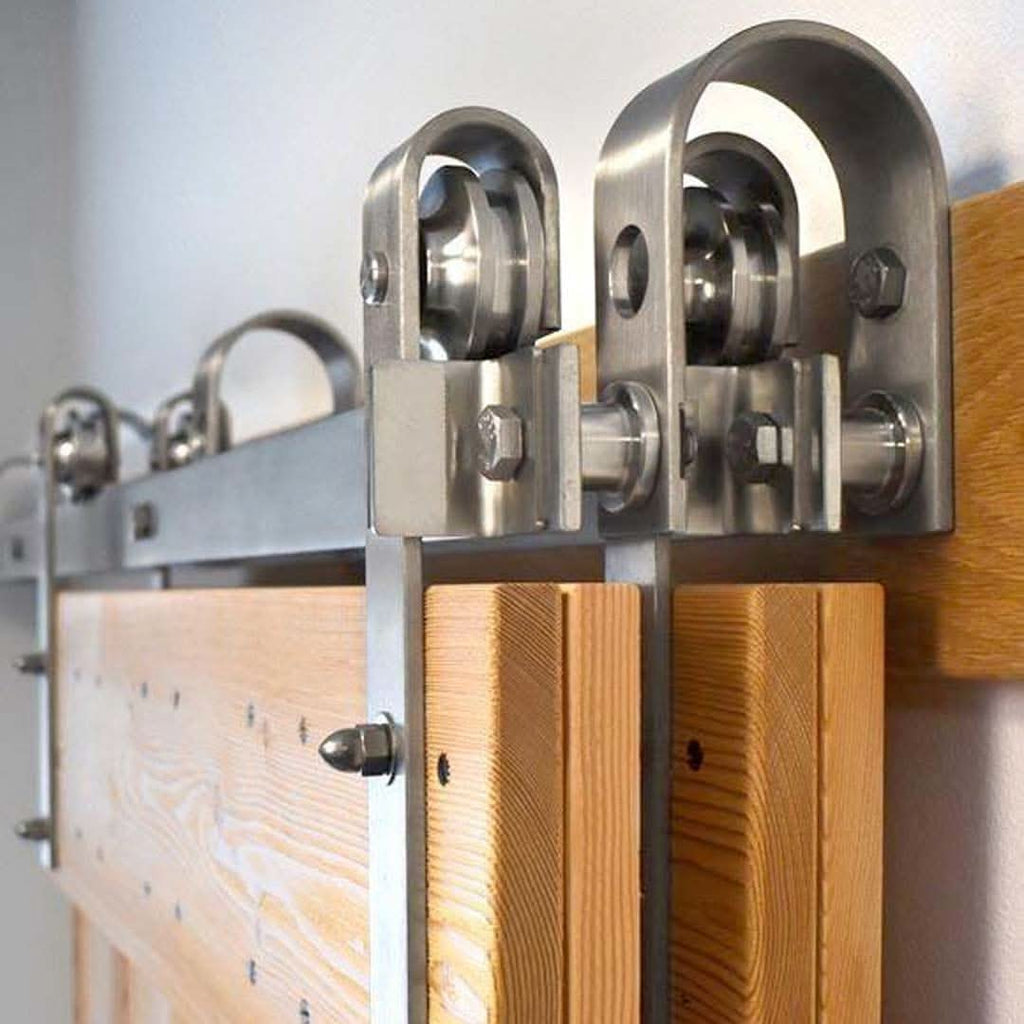

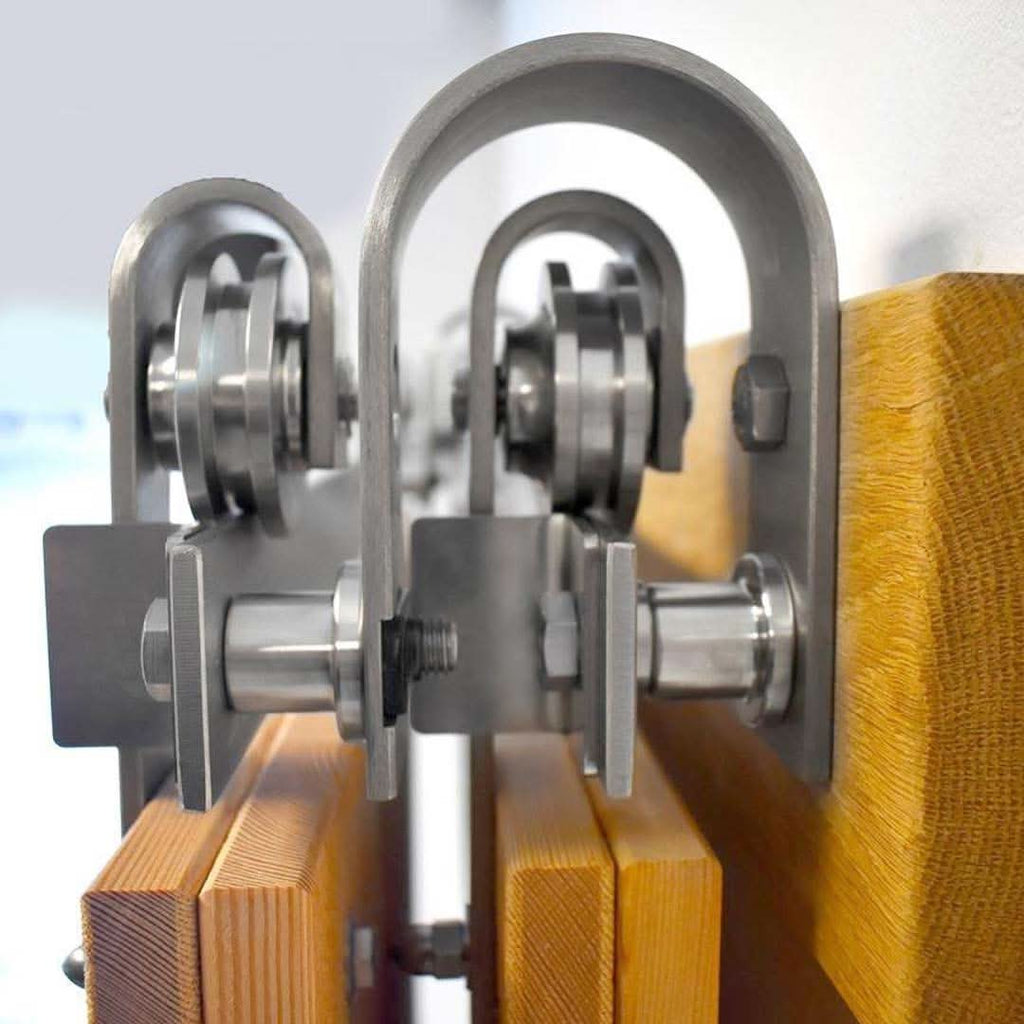

Bypass Track Hangers - Stainless Steel by RealCraft
  • Bypass Track Hangers - Stainless Steel by RealCraft
  • Bypass Track Hangers - Stainless Steel by RealCraft
  • Bypass Track Hangers - Stainless Steel by RealCraft
  • Stainless Steel Bypass Track Interior / Exterior Barn Door Hardware Kit
Stainless Steel Bypass Track Interior / Exterior Barn Door Hardware Kit

Stainless Steel Bypass Track Interior / Exterior Barn Door Hardware Kit

Ships same day or next day

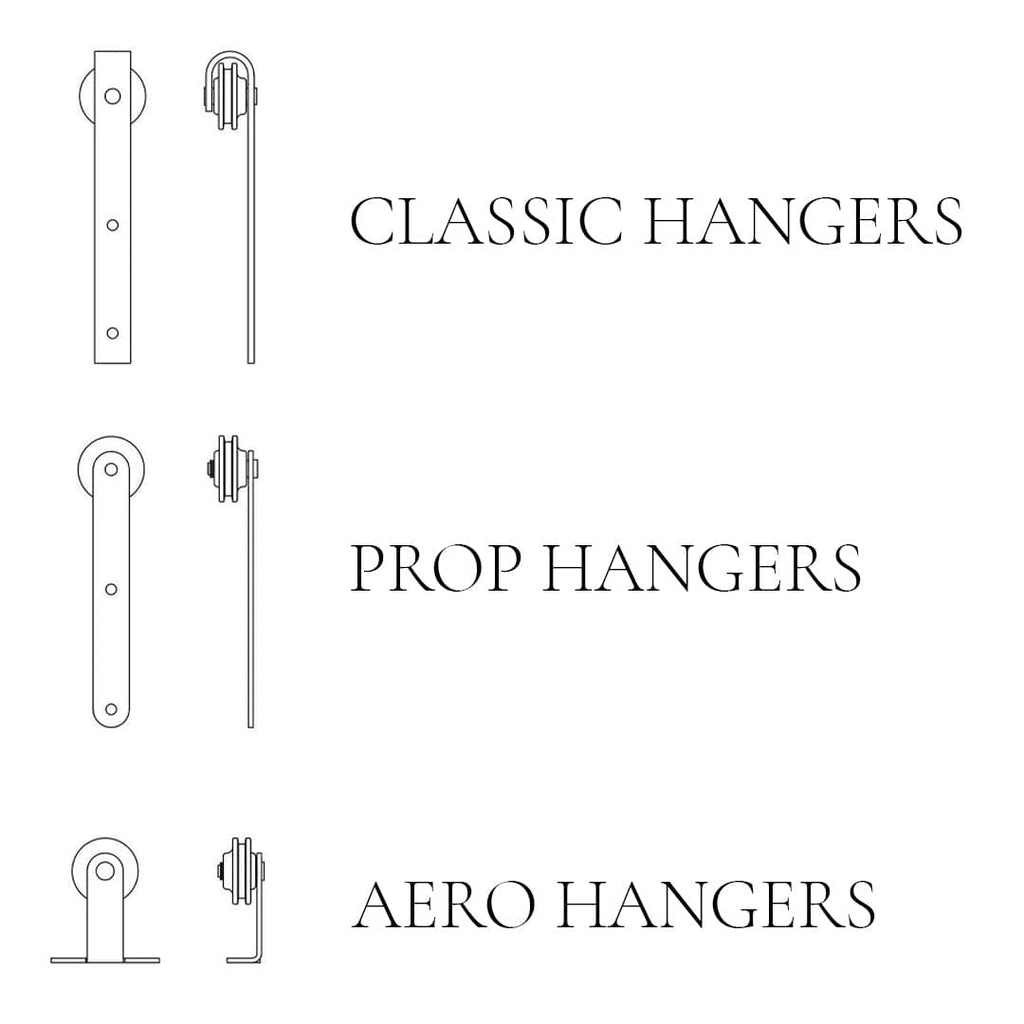

Looking for bypass hardware that’s both beautiful and functional? We’ve got you covered. Our Bypass Flat Track Hardware is based off the design of our Classic Flat Track but in a bypass configuration. Choose from Classic, Prop, or Aero Style hangers. Classic and Prop hangers attach to the front of the door, and Aero attaches to the top of the door, for a lower-profile look.

This door configuration, where doors slide past each other, takes up less space than double swinging doors, offering an elegant solution for tighter spaces.

Bypassing doors work best for concealing large openings, such as closets, office nooks, and openings between kitchens and dining rooms.

Please note that bi-parting bypassing door configurations are not recommended. Biparting bypassing systems require a floor guide in the middle of the door opening, which creates a tripping hazard when doors are open.

Note: For the complete kit, be sure to complete Step 1 and Step 2, adding both items to your cart.

Step One

Bypass Track

Bypass Track

Required

Select a track length at least twice the width of your door.

Have questions? Need a custom track length, finish, or header board? Call us at (253)-853-3815.

Step Two

Bypass Hangers

*Maximum of 2.

Bypass Hangers

Required

Note:
1/2" Standoff Rings are REQUIRED if the mounted doors are 2-1/4" or thicker.

Full Polymer Hush Wheels:
The entire wheel is made of black polymer "hush" material so it will glide along the track quietly.

Steel Matched Wheels:
For the most cohesive aesthetic, these wheels are made from the same stainless steel as the track itself.

Steel Matched Wheels with Hush Insert:
Wheels are made of stainless steel with a black polymer insert where it makes contact with the track. This helps the wheels glide along the track with less noise.

How Many Doors?

*Maximum of 2.

Recommended Accessories
Easy Mount Header Board

Removes the need for wood blocking in the wall.
Easy Mount Header Board

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.

Easy Mount Header Board

Quantity*

All Headers are 5.5" tall and made with Paint Grade Solid Wood. Headers add 1.5" on each side to better fit the hardware track.
Track Accessories
End Stop, Adjustable for Flat Track Kits

*1 Per Door Slab

End Stop, Adjustable for Flat Track Kits

Quantity*

*1 Per Door Slab
Floor Guides
C-Guide Sliding Barn Door Floor Guide Adjustable Width

*1 Per Door Slab

C-Guide Sliding Barn Door Floor Guide Adjustable Width

Quantity*

*1 Per Door Slab
Handles + Pulls
Stand Off + Mounting Rings

Your Hardware Kit

Required

Accessories

Add a Step One and Step Two product above to start your kit.

Subtotal

Please add Step One and Step Two before checkout.

Product Information
  • Application: Interior
  • Hardware Material: Stainless Steel
  • Track System: Single (Biparting not recommended)
  • Weight Capacity (per pair of hangers): 400lbs Classic & 150 lbs Prop and Aero. (Note: Outer rail for any hanger style has a maximum weight capacity of 150lbs per pair of hangers)
  • Soft Stop Compatibility: Compatible
  • Mounting: Wall/Side Mounted
  • Country of Origin: United States (Gig Harbor, WA)
What's In the Kit?
  • Solid stainless steel rail (May ship in pieces depending on selection)
  • 2x hangers with wheels per each door on the track
  • All required nuts and bolts
  • Anti-jump plate
  • T-Guide for guiding your door
  • Standoffs
  • 2x 1/2" spacer guide for installing hangers to door
  • 2x stationary end stops for each set of 2 hangers

Please note that doors are not included with the purchase of hardware.
Sizing Guide

Sizing For A Single Barn Door

Multiply your door width by two to get the correct track length.

Example: For a 3' wide barn door, you'd need a 6' barn door hardware kit.

If your door requires a track length that falls between sizes, you can round up to the next size and add the adjustable end stop. This will allow you to choose where the doors tops on the track. We are also able to cut tracks to your specifications.

For custom track lengths, call us at (253) 853-3815.

For more details, see How to Measure For a Barn Door - An Illustrated Guide.
Accessory Information
  • Soft Stop: Keeps the door from slamming. Closing will be smooth and soft.

  • Adjustable End Stop: Choose exactly where you want your door to stop on the track. This is an optimal way to create space for light switches.

    Note: Soft stops and adjustable end stops are not compatible with each other.

  • Wall Mounted Roller Guide: Heavy-duty, reliable, and optimal for thicker doors or in rooms where you can't drill into the floor.

  • C-Guide: A sleek and elegant floor guide. If you have to see it all the time, it might as well be beautiful.

  • Standoff Rings: Make room for wall molding so the door has optimal clearance.

  • Drywall Anti-Crushing Rings: Keep the track hanging straight instead of leaning away from the wall over time.
Shipping Protection

We've partnered with UPS Capital to introduce an advanced shipping protection plan. This plan shields your purchases against any unforeseen events during transit. Guard your package against loss, theft, or damage. Visit our Shipping Protection page to learn more.
Technical Guides

 Weight rating:

  • Classic hanger style: 400 lb per pair of hangers
  • Prop hanger style: 150 lbs per pair of hangers
  • Aero: 150 lbs per pair of hangers
  • NOTE: Outer rail for any hanger style has a maximum weight capacity of 150lbs per pair of hangers.

Still have questions? Click the chatbox on the bottom right to speak with a sales associate, or call us at (253) 853-3815. We are happy to help!
